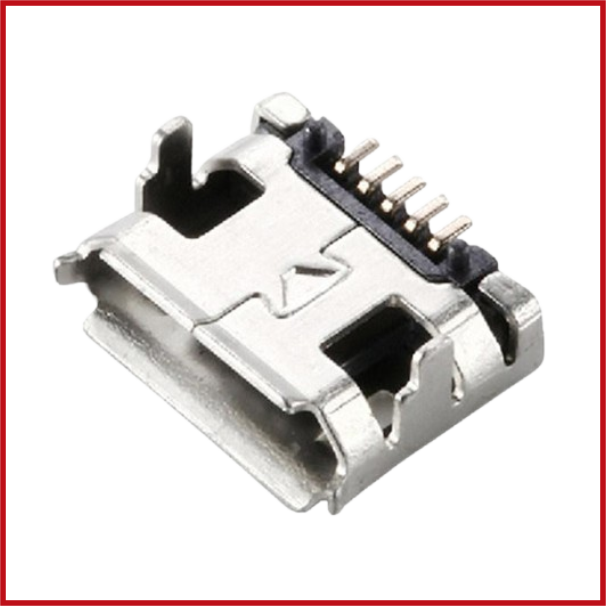

Right Angle SMT, Type B Version 1.01 Micro USB Connector Receptacle
SKU: CON1-0052-000
Sold by Select Automation
Final price R 191.64
R 166.64 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Right Angle SMT Micro USB Type-B Receptacle is a compact surface-mount (SMT) USB connector that provides dependable power and data connectivity in portable and embedded electronic devices.
This connector, with its 90° right-angle orientation and Micro USB Type-B interface, is suited for USB Version 1.0/1.1 applications and provides a space-saving alternative for current PCB layouts.
The connector's strong stainless-steel shell and gold-plated copper alloy contacts provide outstanding mechanical strength, dependable electrical performance, and superior wear resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Micro USB Connector.
Connector Type: USB Type-B Receptacle.
USB Version: USB 1.0 / 1.1 Compatible.
Orientation: Right Angle (90°).
Mounting Type: Surface Mount (SMT).
Termination: Surface Mount Solder.
Number of Contacts: 5 Pin.
Contact Material: Copper Alloy.
Contact Finish: Gold Plated.
Shell Material: Stainless Steel.
Rated Current: Up to 1.8 A.
Rated Voltage: 30 V AC.
Operating Temperature: -30°C to +85°C.
RoHS Compliant: Yes.
