WAGO 2773-2401 600V and 20A INLINE SPLICING CONNECTOR
SKU: CON1-0059-000
Price on request
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

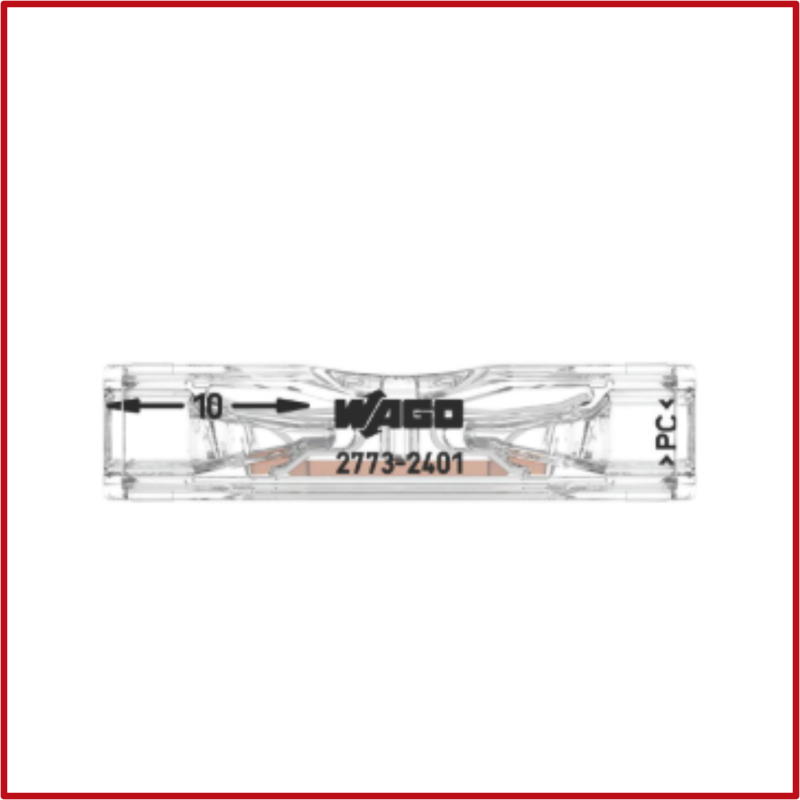

The WAGO 2773-2401 is a tiny inline splicing connector that connects two electrical wires in a straight-through configuration.
It employs PUSH WIRE® technology, which allows for the direct insertion of suitably stripped conductors into the connector without the use of screws or crimping equipment.
The transparent housing enables for visual inspection of the connection.
This product is ideal for electrical installations, control wiring, lighting circuits, and general wire-splicing with solid and stranded conductors up to 4mm² in size.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: PUSH WIRE Inline Splicing Connector.
Number of Conductors: 2.
Connection Type: Inline / Straight-through.
Connection Technology: PUSH WIRE.
Actuation Type: Push-in.
Wire Range: 0.75–4mm².
Solid Conductor: 0.75–4mm² / 18–12AWG.
Stranded Conductor: 1.5–4mm².
Strip Length: 10–11mm.
Rated Voltage: 450V.
Rated Current: 32A.
UL Rated Voltage: 600V.
UL Rated Current: 20A.
Housing Colour: Transparent.
Maximum Surrounding Air Temperature: 85°C (T85).
Dimensions: 6.15 × 6.8 × 29.5mm.
Application: Inline wire splicing, electrical installations, lighting, control panels and general wiring connections.
