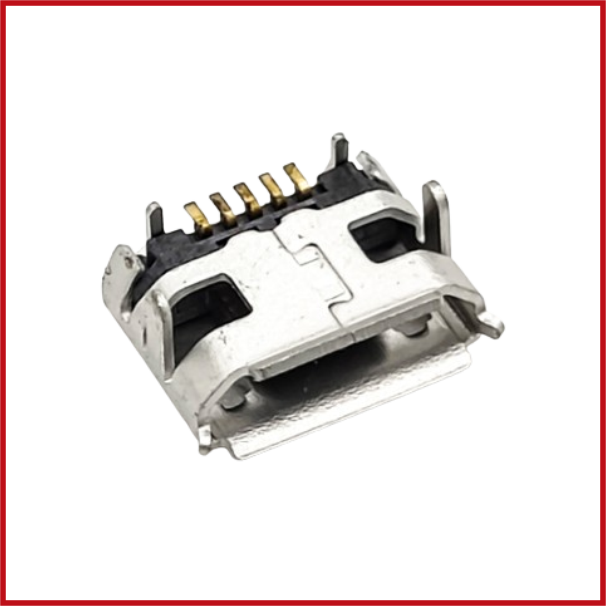

Micro USB Type-B Female PCB Connector
SKU: CON1-0062-000
Sold by Select Automation
Final price R 3.11
R 2.70 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Micro USB Type-B Female Connector is a surface-mount or through-hole USB receptacle designed to provide dependable power and data connections in electronic devices.
It complies with the USB 2.0 protocol, offers high-speed data transfer of up to 480 Mbps, and provides power for charging and embedded applications.
The Micro USB Type-B connection, which is widely used on development boards, charging circuits, portable devices, and embedded systems, has a sturdy metal shell and gold-plated contacts for superior conductivity and long service life.
It is ideal for PCB mounting and is widely used in Arduino-compatible boards, ESP32/ESP8266 modules, power banks, and consumer electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: USB Connector.
Connector Type: Micro USB Type-B Receptacle (Female).
USB Standard: USB 2.0.
Data Transfer Rate: Up to 480 Mbps (High-Speed).
Number of Contacts: 5 Pins.
Pin Configuration: VBUS, D−, D+, ID, GND.
Rated Current: Up to 1.8 A.
Rated Voltage: 30 V AC (contact rating).
Contact Resistance: ≤30 mΩ.
Insulation Resistance: ≥100 MΩ.
Dielectric Withstanding Voltage: 100 V AC.
Mounting Type: Surface Mount (SMT), Through-Hole, or Hybrid.
Contact Material: Copper Alloy with Gold-Plated Contacts.
Shell Material: Stainless Steel.
Housing Material: High-Temperature Thermoplastic.
Mating Cycles: Up to 10,000 insertion/removal cycles.
Operating Temperature: -30°C to +85°C.
