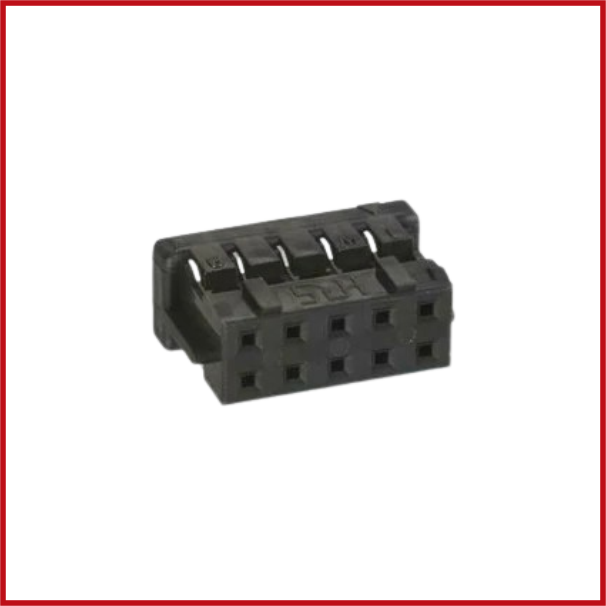

Hirose DF11 Female Connector Housing, 2mm Pitch 10Way 2 Row
SKU: CON10-0001-000
Sold by Select Automation
Final price R 4.53
R 3.94 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Hirose DF11-10DS-2C is a DF11 Series tiny 10-way female connector housing designed for cable-mounted connections with a 2mm pitch.
It has a double-row layout within a small housing, enabling for additional electrical connections to be made where PCB and equipment space is restricted.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Female connector housing.
Connector Gender: Female.
Number of Contacts: 10.
Number of Rows: 2.
Pitch: 2mm.
Mounting Type: Cable mount / free hanging.
Body Orientation: Straight.
Housing Material: Polyamide (PA).
Housing Width: 5mm.
Housing Length: 12mm.
Contact Termination: Crimp.
Compatible Series: Hirose DF11.
Operating Temperature: -30°C to +85°C.
Design: Compact double-row.
Features: Space-saving design, polarisation/guide ribs, secure locking mechanism and reliable cable connection.
