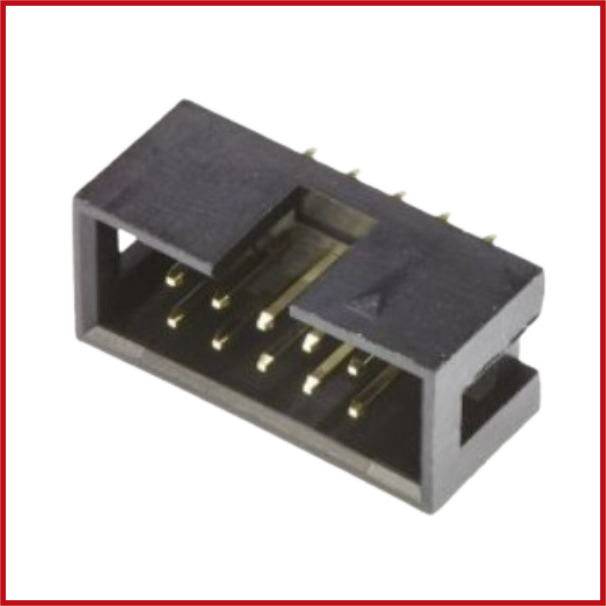

10W IDC Box Header Straight (ARENAL)
SKU: CON10-0002-000
Sold by Select Automation
Final price R 1.70
R 1.48 excl. VAT
Availability: In Stock (22 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 10W IDC Box Header Straight (ARENAL) is a durable PCB-mounted connector designed for reliable ribbon cable and IDC socket connections in electronic and embedded applications.
Featuring a 10-way configuration with a straight vertical design, this connector provides secure board-to-cable connectivity with efficient signal transmission.
The boxed header design includes polarization for accurate mating and secure installation, helping prevent incorrect connection.
Its straight orientation allows vertical cable connection, making it suitable for PCB layouts requiring direct upward cable routing.
Manufactured from high-quality thermoplastic housing with precision metal contacts, this connector offers excellent mechanical durability, low contact resistance, and dependable long-term performance in industrial and electronic systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header Connector.
Brand: ARENAL.
Configuration: 10 Way.
Orientation: Straight / Vertical.
Mounting Type: PCB Mount / Through-Hole.
Pitch: 2.54 mm (0.1").
Row Configuration: 2 × 5.
Connector Type: Male Box Header.
Contact Material: Copper Alloy.
Housing Material: High-Temperature Thermoplastic.
Rated Voltage: 250V.
Rated Current: 1A–3A.
Insulation Resistance: ≥ 1000 MΩ.
Contact Resistance: ≤ 20 mΩ.
Operating Temperature: -40°C to +105°C.
