Solder Tab Terminal Uninsulated 1217861-1 (10 Pcs)
SKU: CON10-0005-000
Sold by Select Automation
Final price R 18.40
R 16.00 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

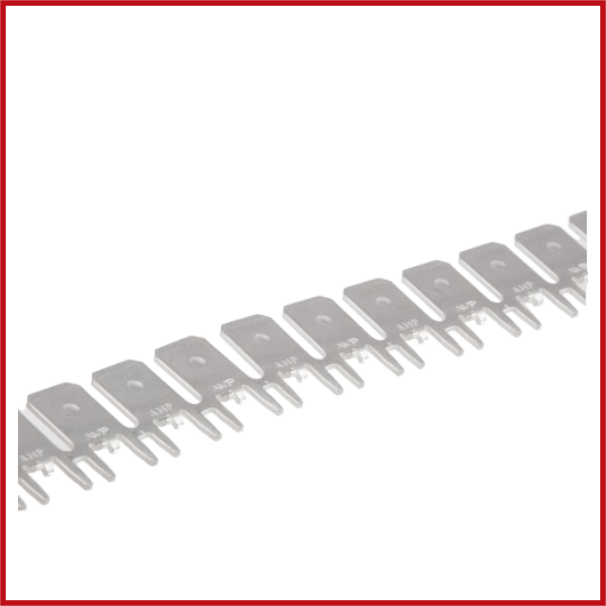

The 1217861-1 Solder Tab Terminal is a high-quality PCB-mount male quick-connect (FASTON® 250) terminal made by TE Connectivity.
Designed for direct soldering to printed circuit boards, it provides a strong and dependable connection point for standard 6.35 mm (0.250") female quick-disconnect terminals.
This uninsulated solder tab, made from tin-plated brass, has high electrical conductivity, corrosion resistance, and mechanical endurance.
It is perfect for power distribution, appliances, industrial equipment, automobile electronics, and other PCB applications that require removable wire connections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Solder Tab Terminal.
Manufacturer: TE Connectivity.
Part Number: 1217861-1.
Series: FASTON® 250.
Terminal Type: Male Tab.
Mounting Type: Through-Hole PCB.
Termination: Solder.
Tab Width: 6.35 mm (0.250").
Tab Thickness: 0.83 mm (0.032").
PCB Hole Diameter: 1.4 mm.
Contact Material: Brass.
Contact Finish: Tin Plated.
Insulation: Uninsulated.
Recommended PCB Thickness: 1.57 mm.
Operating Temperature: -30°C to +110°C.
RoHS Compliant: Yes.
