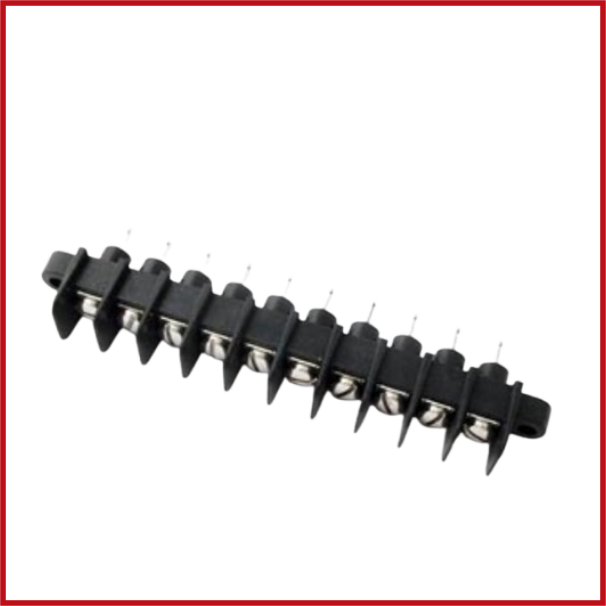

Barrier Terminal Block 10 way 10A 300V Straight Pins Black
SKU: CON10-0006-000
Sold by Select Automation
Final price R 31.64
R 27.51 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 10-way barrier terminal block is designed for secure PCB and electrical wiring connections.
It has a 7.62mm pitch, straight PCB pins, and an open top design with M3 screws to secure cables.
The terminal block supports wire widths ranging from 22-14AWG (up to 1.5mm²) and has a rating of 10A at 300V.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Barrier Terminal Block.
Connector Type: Terminal Block.
Gender: Male.
Number of Ways: 10.
Number of Contacts: 10.
Number of Pins: 10.
Pitch: 7.62mm.
Termination Style: Straight Pins.
Connection Type: Screw Terminal.
Screw Size: M3.
Wire Range: 22–14AWG.
Maximum Wire Size: 1.5mm².
Rated Current: 10A.
Rated Voltage: 300V.
Colour: Black.
Construction: Open Top.
Mounting: PCB Mount.
Application: PCB wiring, control panels, industrial equipment, power distribution and electronic assemblies.
