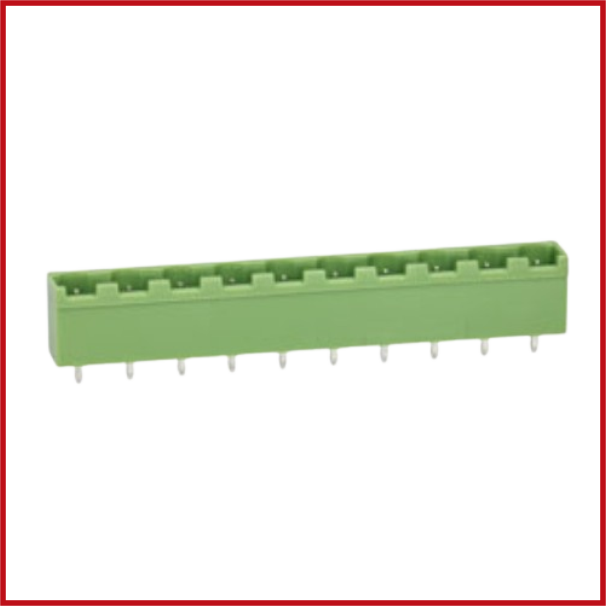

10 Way terminal block vertical DEGSON 2EDGDC-5.08
SKU: CON10-0013-000
Sold by Select Automation
Final price R 24.67
R 21.45 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The DEGSON 2EDGDC-5.08 10 Way Vertical Terminal Block is a high-quality pluggable PCB terminal connector designed for secure wire-to-board connections in industrial and electronic applications.
Featuring a 10-way configuration and 5.08 mm pitch, it provides reliable electrical connectivity for power and signal transmission.
Its vertical PCB mounting design allows straight wire entry, making it ideal for applications requiring efficient wiring and compact board layouts.
The pluggable structure enables quick installation, easy maintenance, and convenient replacement during servicing.
Manufactured from durable flame-retardant insulating material with high-conductivity metal contacts, this terminal block offers excellent electrical performance, strong mechanical stability, and long service life in demanding environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pluggable Terminal Block.
Brand: DEGSON.
Model: 2EDGDC-5.08.
Configuration: 10 Way.
Pitch: 5.08 mm.
Orientation: Vertical.
Mounting Type: PCB Mount.
Connection Type: Screw Clamp.
Contact Material: Copper Alloy, Tin Plated.
Housing Material: PA66 / Flame-Retardant Thermoplastic.
Rated Voltage (UL): 300V.
Rated Voltage (IEC): 320V.
Rated Current: 12A–15A.
Wire Range: 0.2–2.5 mm² (28–12 AWG).
Torque: 0.5–0.6 N·m.
Strip Length: 8–10 mm.
Operating Temperature: -40°C to +105°C.
Flammability Rating: UL94V-0.
