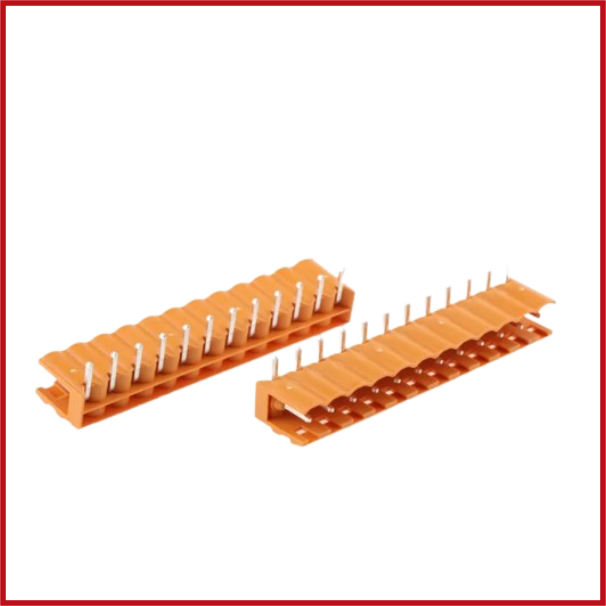

5.08mm Pitch, 12 Way, 1 Row, Right Angle PCB Terminal Block Header, Through Hole
SKU: CON12-0001-000
Sold by Select Automation
Final price R 147.36
R 128.14 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch 12-Way Right Angle PCB Terminal Block Header is a sturdy wire-to-board PCB connector that allows for secure and dependable pluggable terminal block connections.
This 90° right-angle through-hole header has a 12-position, single-row layout with a 5.08 mm pitch, making it an efficient choice for horizontal cable routing while minimizing PCB area needs.
The header is intended to match with suitable 5.08 mm pluggable terminal block plugs, allowing for quick installation, simple maintenance, and dependable field wiring.
Its tin-plated copper alloy contacts and UL94 V-0 flame-retardant PA66 housing provide good electrical performance, mechanical strength, and a long service life in demanding industrial and commercial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Block Header.
Number of Positions: 12 Way.
Configuration: 1 Row.
Pitch: 5.08 mm.
Orientation: Right Angle (90°).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Compatible Connector: 5.08 mm Pitch Pluggable Terminal Block Plug.
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
Colour: Green.
RoHS Compliant: Yes.
