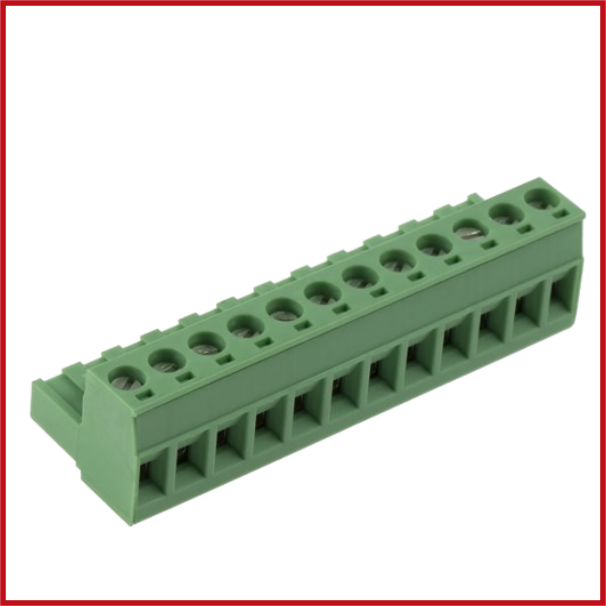

12 Way 90 degree connector
SKU: CON12-0005-000
Sold by Select Automation
Final price R 14.38
R 12.50 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2EDGK-5.08-12P is a high-quality pluggable terminal block connector designed for secure wire-to-board connections in industrial, automation, and electronic applications.
Featuring a 12-pin configuration with a 5.08 mm pitch, this connector provides reliable electrical connectivity for power and signal distribution.
Its pluggable design allows quick connection and disconnection, simplifying installation, maintenance, and servicing.
The screw-clamp connection ensures secure wire retention and stable electrical contact, making it ideal for demanding environments.
Manufactured from durable flame-retardant insulating material with high-conductivity metal contacts, the 2EDGK-5.08-12P offers excellent electrical performance, mechanical strength, and long service life.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Conductor cross section solid: 1.0~2.5mm².
Conductor cross section flexible: 1.0~2.5mm².
AWG: 28~12AWG.
Torque: 0.5N.m.
Strip length: 7mm.
Rated voltage (B): 300V.
Rated voltage (D): 300V.
Rated current (B): 15A.
Rated current (D): 10A.
Rated voltage: 320V.
Rated current: 20A.
Rated voltage (III/2): 320V.
Rated surge voltage (III/2): 4KV.
Connection direction: 0°.
Connection method: Screw connection.
Screwdriver: Slotted screwdriver.
screw thread: M3.
Pitch: 5.08mm.
Number of potentials: 12.
Pluggable or not: Yes.
Number of rows: 1.
Environmental items: Compliant with REACH/RoHS.
Contact material: Copper alloy.
Insulation Materials: PA66.
Flammability rating: UL94V-0.
Ambient temperature (operation): -40℃~105℃.
