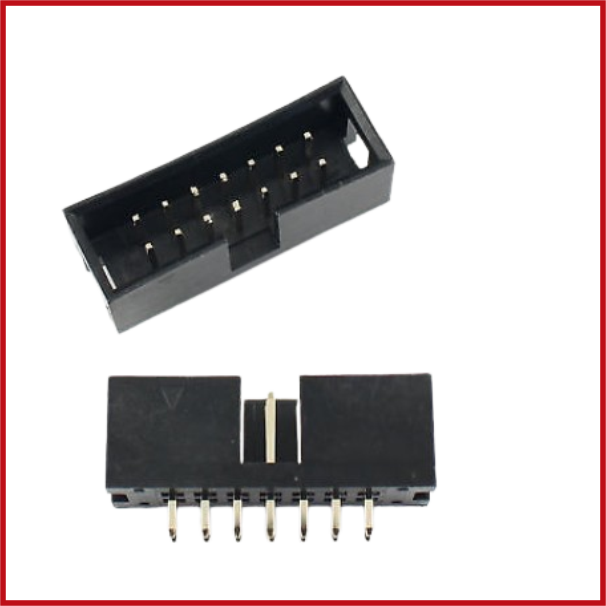

14W IDC Box Header Straight
SKU: CON14-0001-000
Sold by Select Automation
Final price R 1.58
R 1.37 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 14-Way IDC Box Header is a high-quality through-hole PCB connector intended for the secure connecting of 14-way IDC ribbon cable sockets.
This box header provides a secure, polarized interface for ribbon cable assemblies in industrial, commercial, and electronic applications. It has a 2.54 mm pitch, a 2-row (2 × 7) arrangement, and is mounted vertically.
The connector has a keyed shroud to prevent incorrect cable insertion and is made with tin-plated copper alloy contacts for superior electrical conductivity and long-term dependability.
It is best suited for embedded systems, industrial automation, computer peripherals, telecommunications equipment, and general PCB connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header.
Number of Positions: 14 Way.
Configuration: 2 Rows (2 × 7).
Pitch: 2.54 mm (0.100").
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connector Type: Shrouded Box Header.
Mating Connector: 14-Way IDC Ribbon Cable Socket.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PBT, UL94 V-0 Flame-Retardant.
Rated Current: 1 A.
Rated Voltage: 250 V AC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
