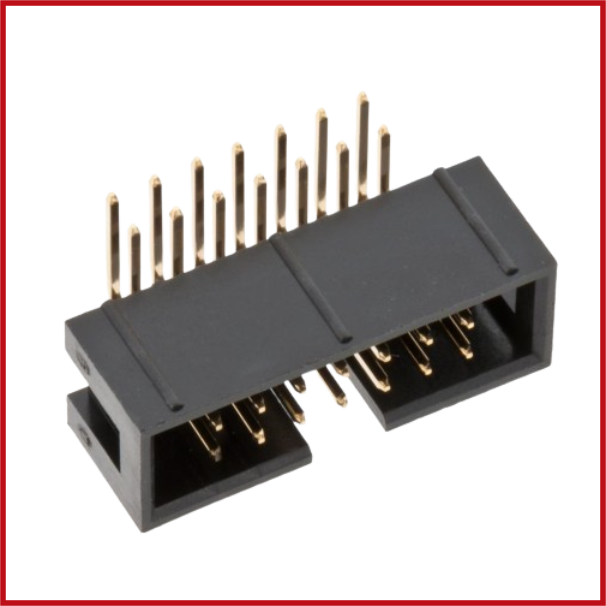

14W IDC Box Header Right Angle
SKU: CON14-0002-000
Sold by Select Automation
Final price R 2.47
R 2.15 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 14-Way IDC Box Header, Right Angle is a high-quality through-hole PCB connector designed to securely and reliably connect 14-way IDC ribbon cable connections.
This shrouded box header, with a 2.54 mm pitch, 2-row (2 × 7) arrangement, and 90° right-angle orientation, offers a space-saving option for horizontal ribbon cable connections in electronic and industrial settings.
The connector features a polarized keyed shroud to prevent erroneous cable insertion and tin-plated copper alloy contacts for superior electrical conductivity and long-term dependability.
It is best suited for embedded systems, industrial automation, computer peripherals, telecommunications equipment, and general PCB connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header.
Number of Positions: 14 Way.
Configuration: 2 Rows (2 × 7).
Pitch: 2.54 mm (0.100").
Orientation: Right Angle (90°).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connector Type: Shrouded Box Header.
Mating Connector: 14-Way IDC Ribbon Cable Socket.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PBT Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: 1 A.
Rated Voltage: 250 V AC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
