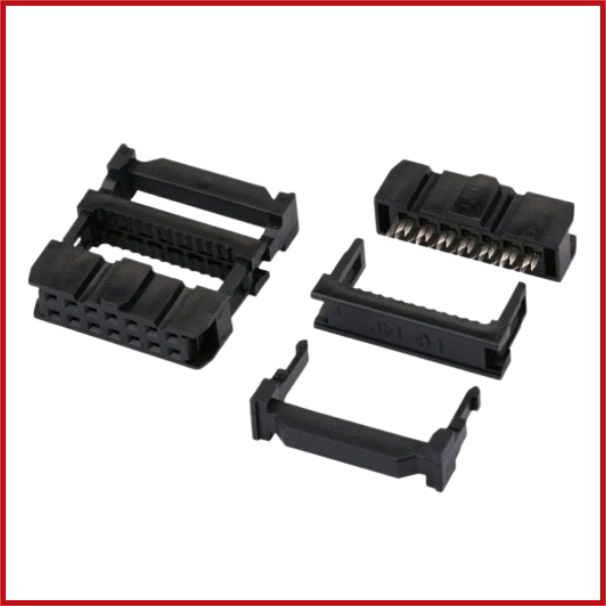

14W IDC Socket and Strain Relief
SKU: CON14-0003-000
Sold by Select Automation
Final price R 1.67
R 1.45 excl. VAT
Availability: In Stock (36 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 14-Way IDC Socket with Strain Relief is a dependable ribbon cable connector designed for quick and secure termination of 14-way flat ribbon cables.
With a 2.54 mm pitch, 2-row (2 × 7) layout, and IDC (Insulation Displacement Contact) termination, this socket eliminates the need for wire stripping or soldering, allowing for quick and efficient cable installation.
The incorporated strain relief clip adds mechanical support to the ribbon cable while decreasing stress on the IDC connections, assuring long-term durability in demanding applications.
This connector, which is designed to fit standard 14-way IDC box headers, is perfect for hookups between industrial controllers, computer peripherals, embedded systems, and general PCB.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Ribbon Cable Socket.
Number of Positions: 14 Way.
Configuration: 2 Rows (2 × 7).
Pitch: 2.54 mm (0.100").
Termination Type: IDC (Insulation Displacement Contact).
Cable Type: Flat Ribbon Cable.
Compatible Cable Pitch: 1.27 mm (0.050").
Mounting Type: Cable Mount.
Strain Relief: Integrated Clip.
Mating Connector: 14-Way IDC Box Header.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PBT Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: 1 A.
Rated Voltage: 250 V AC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
