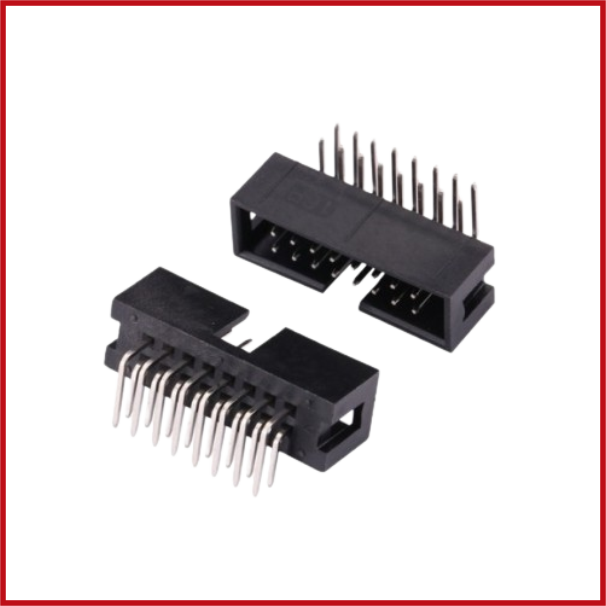

16W IDC Box Header Right Angle
SKU: CON16-0002-000
Sold by Select Automation
Final price R 3.96
R 3.44 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 16W IDC Box Header Right Angle is a durable PCB-mounted connector designed for secure ribbon cable and IDC socket connections in electronic, industrial, and embedded applications.
Featuring a 16-way configuration with a right-angle design, this connector provides reliable board-to-cable connectivity while optimizing PCB space and cable routing.
The boxed header includes a polarized housing to ensure correct mating and prevent incorrect insertion.
Its right-angle orientation allows hori
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header Connector.
Configuration: 16 Way.
Orientation: Right Angle.
Mounting Type: PCB Mount / Through-Hole.
Pitch: 2.54 mm (0.1").
Row Configuration: 2 × 8.
Connector Type: Male Box Header.
Contact Material: Copper Alloy.
Housing Material: High-Temperature Thermoplastic.
Rated Voltage: 250V.
Rated Current: 1A–3A.
Insulation Resistance: ≥ 1000 MΩ.
Contact Resistance: ≤ 20 Mω.
Operating Temperature: -40°C to +105°C.
