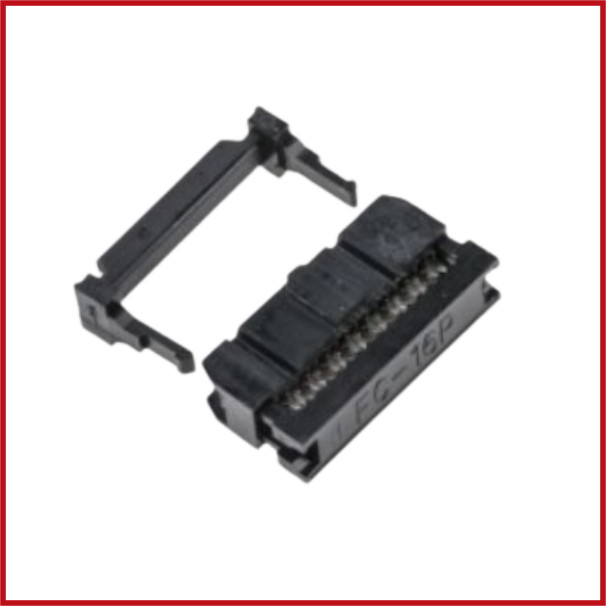

16W IDC Socket and Strain Relief
SKU: CON16-0003-000
Sold by Select Automation
Final price R 2.16
R 1.88 excl. VAT
Availability: In Stock (38 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 16W IDC Socket and Strain Relief is a reliable cable connector assembly designed for secure termination of 16-way ribbon cables in electronic, industrial, and embedded applications.
This connector set consists of a 16-way IDC socket and a matching strain relief clip, providing dependable cable retention and improved mechanical stability.
Designed for fast and efficient cable assembly, the IDC (Insulation Displacement Contact) socket enables direct termination of flat ribbon cable without the need for wire stripping.
The included strain relief helps protect cable connections from stress, vibration, and accidental pulling, ensuring long-term reliability.
Manufactured from durable thermoplastic housing with precision metal contacts, this connector assembly offers stable signal transmission, low contact resistance, and excellent mechanical durability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Socket with Strain Relief.
Configuration: 16 Way.
Connector Type: Female IDC Socket.
Pitch: 2.54 mm (0.1").
Row Configuration: 2 × 8.
Cable Type: Flat Ribbon Cable.
Contact Type: Insulation Displacement Contact (IDC).
Contact Material: Copper Alloy.
Housing Material: High-Temperature Thermoplastic.
Strain Relief: Included.
Rated Voltage: 250V.
Rated Current: 1A–3A.
Insulation Resistance: ≥ 1000 MΩ.
Contact Resistance: ≤ 20 mΩ.
Operating Temperature: -40°C to +105°C.
