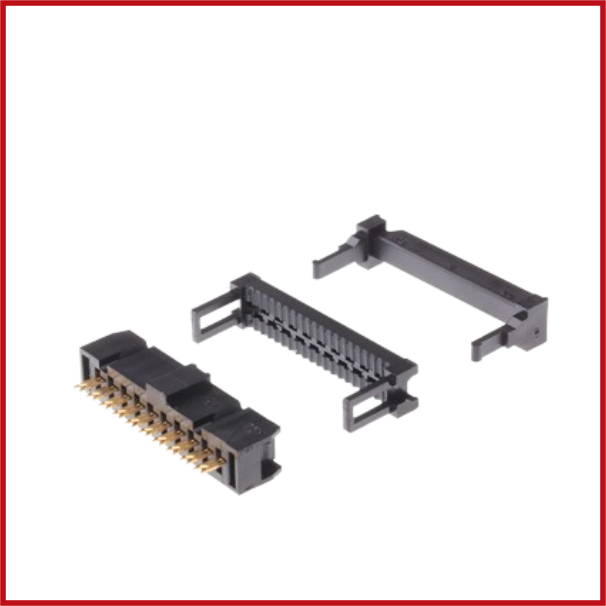

HIF3B Series 2.54mm Pitch Cable Mount IDC Connector, Socket, 16 Way, 2 Row
SKU: CON16-0004-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HIF3B Series 16-way IDC Connector Socket is a female connector that is cable-mounted and meant to be used with ribbon cable with a pitch of 2.54mm.
It offers a compact and dependable way to connect multi-conductor wires to compatible PCB headers and other HIF3B Series connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC ribbon cable socket.
Connector Gender: Female.
Number of Contacts: 16.
Number of Rows: 2.
Pitch: 2.54mm.
Mounting Type: Cable mount.
Termination Type: IDC.
Connector Orientation: Straight.
Contact Plating: Gold.
Contact Material: Beryllium copper alloy.
Housing Material: Polybutylene terephthalate (PBT).
Housing Colour: Black.
Current Rating: 1A.
Voltage Rating: 200V AC.
Compatible Cable: UL2651 AWG 28 flat ribbon cable.
Operating Temperature: -55°C to +85°C.
Design: Shrouded / polarised.
Features: Mis-insertion prevention, polarising guides, strain relief and secure IDC cable termination.
Application: Ribbon cable assemblies, computers, industrial control systems, electronic equipment, instrumentation and PCB-to-cable connections.
