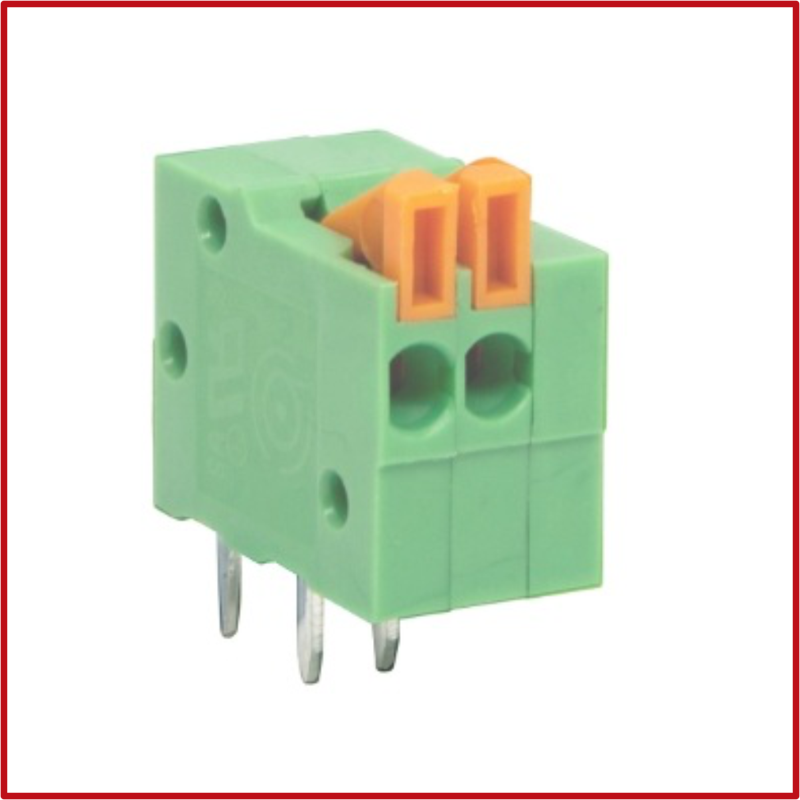

Screwless Push in Fix PCB 2-way connector
SKU: CON2-0002-000
Price on request
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
.Normal{font-weight:normal;font-style:normal;color:#FFFFFF;font-size:12px;font-family:Segoe UI;margin:0px 0px 0px 0px ;line-height:normal;}
.Heading_1{font-weight:normal;font-style:normal;color:#2F5496;font-size:16px;font-family:Calibri Light;margin:12px 0px 0px 0px ;line-height:normal;}
Description:
A screwless push-in fix PCB 2 way connector is a tiny terminal block for printed circuit boards.
It enables for rapid, tool-free wire insertion and secure retention utilizing a spring clamp mechanism.
It is commonly used in control systems, automation, and consumer electronics, where quick assembly and dependable electrical connections are required.
Type: PCB terminal block connector.
Connection method: Screwless, push-in spring clamp.
Ways: Two-way (wire connecting points).
Mounting: Soldered directly to the PCB.
Ease of Use: Wires are inserted directly and secured using spring tension instead of screws.
Buy currently uses Select Automation shop pricing and checkout.
.Normal{font-weight:normal;font-style:normal;color:#FFFFFF;font-size:12px;font-family:Segoe UI;margin:0px 0px 0px 0px ;line-height:normal;}
.Heading_1{font-weight:normal;font-style:normal;color:#2F5496;font-size:16px;font-family:Calibri Light;margin:12px 0px 0px 0px ;line-height:normal;}
Specifications:
Pitch (pin spacing): Common options include 2.54 mm, 3.5 mm, 5.0 mm, or 5.08 mm depending on current/voltage requirements.
Current Rating:
~4 A at 150 V (for 2.54 mm pitch, signal use).
Up to ~10 A at 250 V (for 5.0–5.08 mm pitch, power use).
Voltage Rating: 150–300 V AC/DC.
Wire Size Supported: 0.2–2.5 mm² (24–12 AWG).
Housing Material: Flame retardant thermoplastic, UL94 V 0 rated.
Contacts: Copper alloy with tin or nickel plating for conductivity and corrosion resistance.
Compliance: CE, UL, and RoHS standards.
