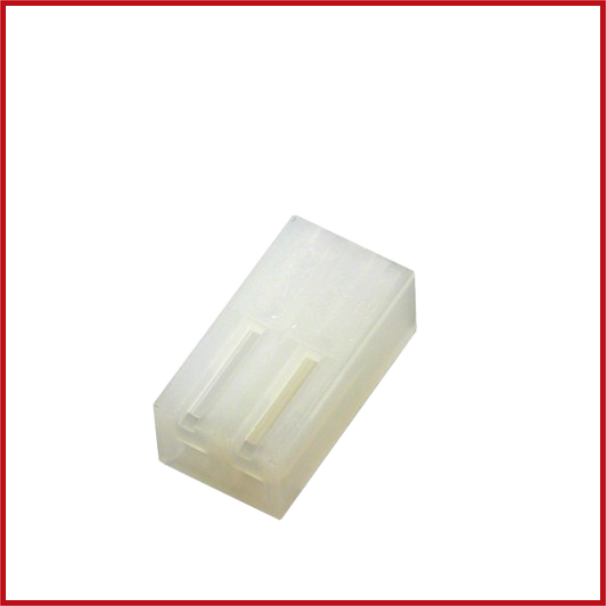

Molex SPOX 5197, 5.08mm Pitch, 2 Way, 1 Row Female Connector Housing
SKU: CON2-0006-000
Sold by Select Automation
Final price R 11.71
R 10.18 excl. VAT
Availability: In Stock (23 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Molex's SPOX™ 5197 Series Female Connector Housing is a dependable 2-way wire-to-board receptacle for industrial and commercial applications.
This connector housing, with a 5.08 mm pitch and single-row arrangement, fits Molex SPOX™ female crimp terminals and is compatible with Molex SPOX™ PCB headers.
The housing is made of UL94 V-0 flame-retardant nylon, which provides good mechanical strength, secure terminal retention, and long-term durability.
The polarized design avoids erroneous mating, making it suitable for power supplies, industrial control equipment, household appliances, and automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Series: Molex SPOX™.
Series Number: 5197.
Number of Positions: 2 Way.
Rows: 1.
Pitch: 5.08 mm.
Connector Type: Receptacle Housing.
Gender: Female.
Mounting Type: Cable Mount.
Termination Type: Crimp.
Compatible Terminals: Molex SPOX™ Female Crimp Contacts.
Compatible Header: Molex SPOX™ 5.08 mm PCB Header.
Housing Material: Nylon (PA66), UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
Current Rating: Up to 7 A.
Voltage Rating: Up to 250 V.
Colour: Natural (White).
RoHS Compliant: Yes.
