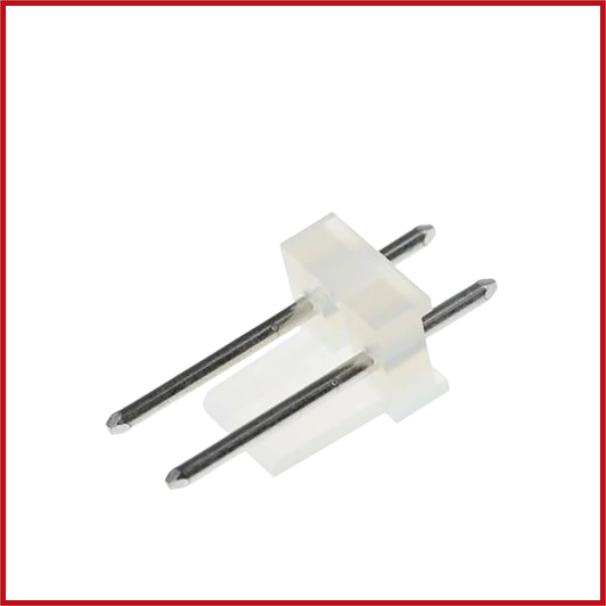

Molex KK 508 2599, 5.08mm Pitch, 2 Way, 1 Row, Straight PCB Header, Through Hole
SKU: CON2-0007-000
Sold by Select Automation
Final price R 17.66
R 15.36 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Molex KK 508 Series 2599 PCB Header is a high-quality two-way wire-to-board connector intended for dependable power and signal connections in industrial and commercial electronic applications.
This PCB header has a 5.08 mm pitch, a single-row layout, and straight through-hole attachment, making it a secure connection interface for Molex KK 508 Series receptacle housings.
The connector has high-conductivity tin-plated brass contacts and a sturdy UL94 V-0 flame-retardant nylon housing, resulting in exceptional electrical performance, mechanical strength, and long-term durability.
It is suitable for power supplies, industrial controllers, household appliances, automation equipment, and general PCB connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Header.
Series: Molex KK 508.
Series Number: 2599.
Number of Positions: 2 Way.
Rows: 1.
Pitch: 5.08 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connector Type: PCB Header.
Compatible Connector: Molex KK 508 Series Receptacle Housing.
Current Rating: Up to 15 A.
Voltage Rating: Up to 600 V.
Contact Material: Brass.
Contact Finish: Tin Plated.
Housing Material: Nylon, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
