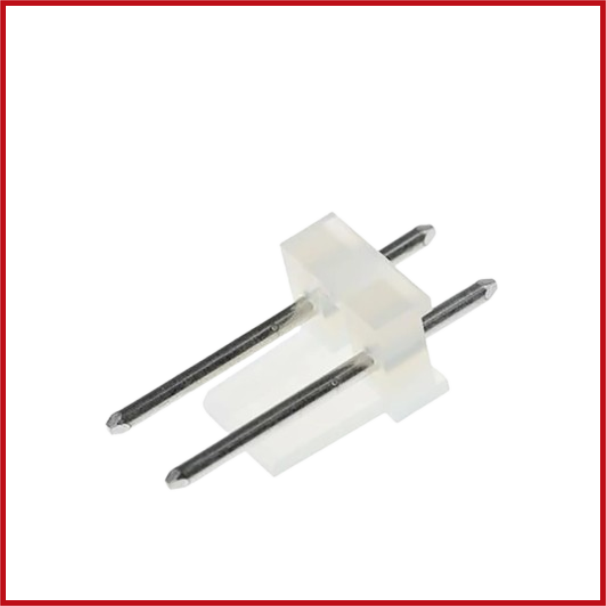

MTA-156, 3.96mm Pitch, 2 Way, 1 Row, Straight PCB Header, Through Hole
SKU: CON2-0008-000
Sold by Select Automation
Final price R 4.75
R 4.13 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MTA-156 2-Way Straight PCB Header is a high-quality wire-to-board connector designed to provide secure and dependable power and signal connections.
This PCB header, with a 3.96 mm (0.156") pitch, 2-position, single-row arrangement, and straight through-hole attachment, is intended to work with compatible MTA-156 IDC or crimp connection housings.
The connector, which features tin-plated copper alloy contacts and a UL94 V-0 flame-retardant thermoplastic housing, has good electrical performance, mechanical durability, and a long service life.
It is commonly utilized in power supply, industrial controls, appliances, LED lighting, and other electronic devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Header.
Series: MTA-156.
Number of Positions: 2 Way.
Configuration: 1 Row.
Pitch: 3.96 mm (0.156").
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: Up to 7 A.
Rated Voltage: Up to 600 V AC/DC.
Operating Temperature: -55°C to +105°C.
RoHS Compliant: Yes.
