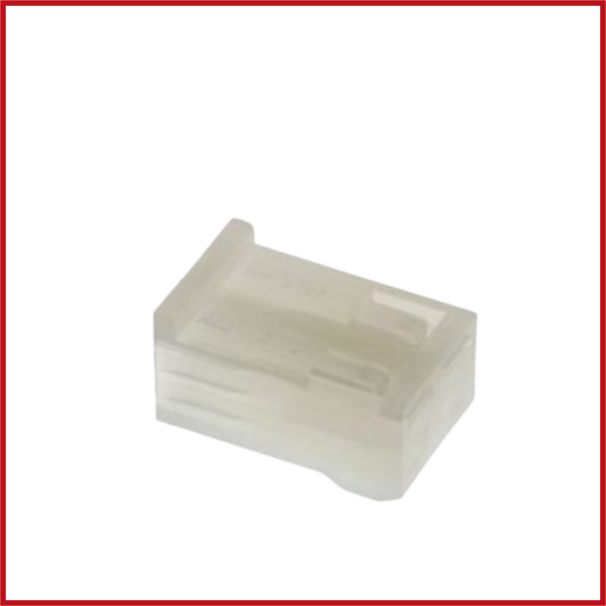

SL-156 Series 2-Way Female Connector Housing, 3.96mm Pitch, 1 Row, Cable Mount
SKU: CON2-0010-000
Sold by Select Automation
Final price R 3.30
R 2.87 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SL-156 Series Female Connector Housing is a high-quality two-way wire-to-board receptacle housing that ensures secure and reliable power and signal connections.
This cable-mount connector has a 3.96 mm (0.156") pitch and a single-row arrangement.
It accepts suitable female crimp terminals and connects with appropriate SL-156 Series PCB headers.
The housing is made of long-lasting UL94 V-0 flame-retardant nylon, which provides high mechanical strength, secure terminal retention, and consistent electrical performance.
Its polarized shape helps to prevent incorrect mating, making it suitable for industrial controllers, power supply, appliances, LED lighting, and other electronic equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Series: SL-156.
Number of Positions: 2 Way.
Rows: 1.
Pitch: 3.96 mm (0.156").
Connector Type: Receptacle Housing.
Gender: Female.
Mounting Type: Cable Mount.
Termination Type: Crimp.
Connection Type: Wire-to-Board.
Compatible Contacts: SL-156 Series Female Crimp Terminals.
Compatible Header: SL-156 Series 3.96 mm PCB Header.
Housing Material: Nylon (PA66), UL94 V-0 Flame-Retardant.
Current Rating: Up to 7 A.
Voltage Rating: Up to 250 V.
Operating Temperature: -40°C to +105°C.
Colour: Natural (White).
RoHS Compliant: Yes.
