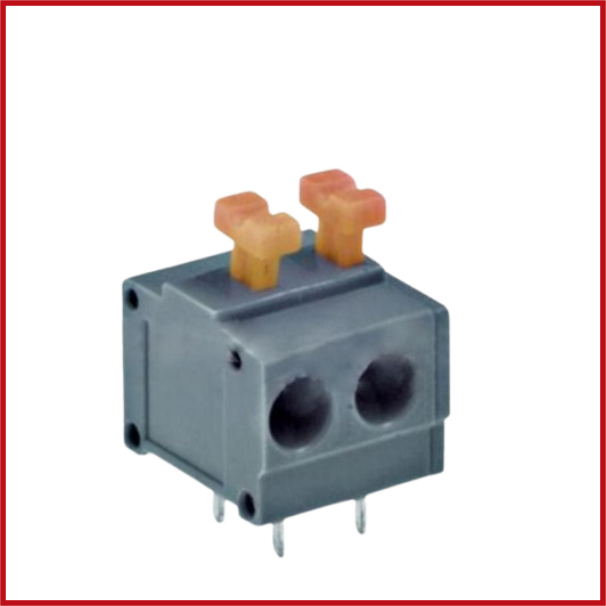

      7.5mm Screwless Spring Terminal Block 2 way Straight Pins PUSH

      SKU: CON2-0011-000

      Sold by Select Automation

      Final price R 5.26
      R 4.57 excl. VAT

      Availability: In Stock (5 on hand)

      Short Description
      The 7.5mm Screwless Spring Terminal Block, 2 Way, Straight Pins is a high-quality through-hole PCB terminal block that allows for quick, secure, and maintenance-free wire connections. Its push-in spring clamp technology eliminates the need for screws, allowing for speedy, tool-free wire insertion while guaranteeing a stable, vibration-resistant electrical connection. With a 7.5 mm pitch and a 2-position layout, this terminal block is perfect for power distribution, industrial control systems, automation equipment, LED lighting, and other PCB applications that require dependable wire termination. The straight pin design allows for vertical PCB attachment, while the flame retardant housing ensures long-term durability and safety.
      CON2-0011-000
      Alternative image 1
      Specifications: Product Type: Screwless Spring Terminal Block. Number of Positions: 2 Way. Pitch: 7.5 mm. Orientation: Straight (Vertical). Mounting Type: Through-Hole PCB. Connection Type: Push-In Spring Clamp. Wire Entry: Top Entry. Rated Current: 16 A. Rated Voltage: 300 V AC. Wire Size: Solid Wire: 0.2–2.5 mm² (24–14 AWG). Stranded Wire: 0.2–1.5 mm² (24–16 AWG). Housing Material: PA66, UL94 V-0 Flame-Retardant. Contact Material: Tin-Plated Copper Alloy. Operating Temperature: -40°C to +105°C. RoHS Compliant: Yes.
