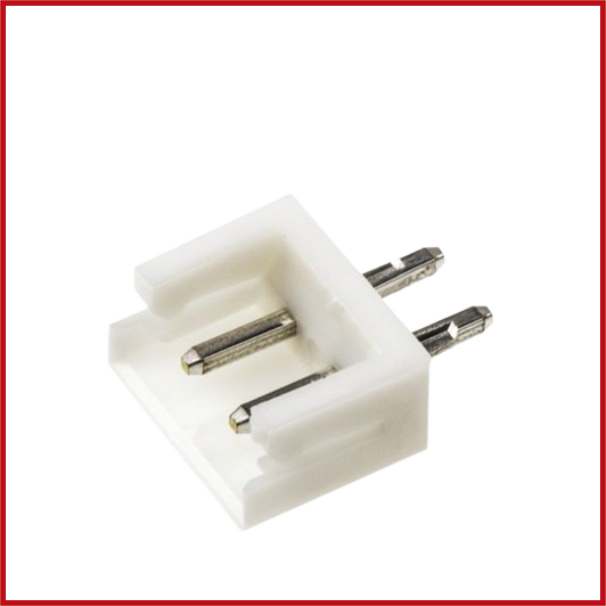

2.5mm Pitch, 2 Way, 1 Row, Straight PCB Header, Through Hole
SKU: CON2-0014-000
Sold by Select Automation
Final price R 3.08
R 2.68 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.5mm Pitch 2-Way Straight PCB Header is a compact and dependable wire-to-board connector intended for safe power and signal connections in electronic applications.
This through-hole PCB header, with its 2-position, single-row layout and 2.5 mm pitch, provides a dependable connecting interface for suitable female connector housings and crimp terminals.
The connector, made of tin-plated copper alloy contacts and a UL94 V-0 flame-retardant thermoplastic housing, has high electrical conductivity, mechanical strength, and long-term dependability.
Its straight (vertical) architecture makes it ideal for consumer electronics, industrial equipment, power supplies, LED lights, and embedded systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Header.
Number of Positions: 2 Way.
Configuration: 1 Row.
Pitch: 2.5 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Compatible Connector: 2.5 mm Pitch Female Connector Housing.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: Up to 3 A.
Rated Voltage: Up to 250 V AC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
