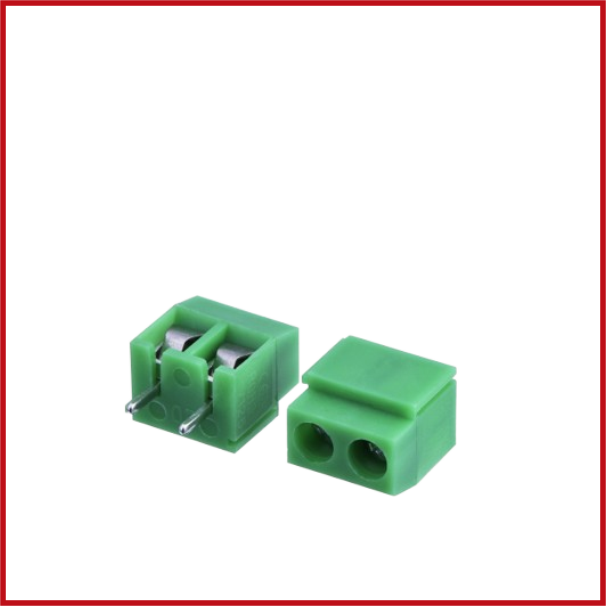

5.08-301-2P Screw Terminal Block Connector 5mm Pitch 2 Way Green
SKU: CON2-0019-000
Sold by Select Automation
Final price R 2.19
R 1.90 excl. VAT
Availability: In Stock (49 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08-301-2P Screw Terminal Block Connector is a high-quality two-way PCB-mounted terminal block that ensures secure and reliable wire-to-board connections.
With a 5.08 mm pitch and a strong screw-clamp termination, it offers excellent electrical conductivity and wire retention for power and signal applications.
This terminal block, made of UL94 V-0 flame-resistant PA66 housing with tin-plated copper alloy contacts, is ideal for industrial controls, power supply, automation systems, LED lights, and general-purpose PCB connections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Screw Terminal Block.
Model: 5.08-301-2P.
Number of Positions: 2 Way.
Pitch: 5.08 mm (5 mm nominal).
Mounting Type: Through-Hole PCB.
Wire Entry: Vertical (Top Entry).
Connection Type: Screw Clamp.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Wire Size: 28–12 AWG (0.2–2.5 mm²).
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Contact Material: Tin-Plated Copper Alloy.
Screw Material: Zinc-Plated Steel.
Colour: Green.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
