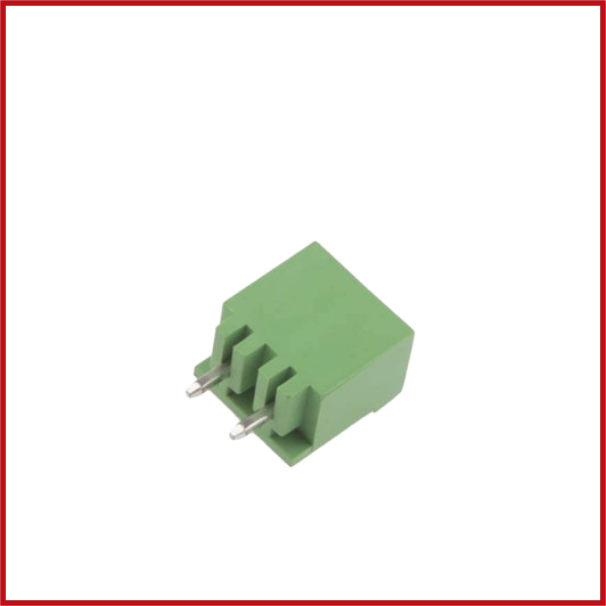

5.08mm Pitch, 2 Way, 1 Row, Straight PCB Terminal Header
SKU: CON2-0026-000
Price on request
Availability: In Stock (198 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch 2-Way Straight PCB Terminal Header is a durable wire-to-board PCB connector that allows for secure and dependable pluggable terminal block connections.
This straight (vertical) through-hole PCB header, with its 2-position, single-row structure and 5.08 mm pitch, provides a dependable interface for compatible 5.08 mm pluggable terminal block connections, making it perfect for power and signal applications.
The header, built with tin-plated copper alloy contacts and a UL94 V-0 flame-retardant PA66 housing, has outstanding electrical conductivity, mechanical durability, and long-term reliability.
It’s through-hole construction creates a strong mechanical link with the PCB, making it ideal for industrial control systems, power supply, automation equipment, and general electronic assemblies.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Header.
Number of Positions: 2 Way.
Configuration: 1 Row.
Pitch: 5.08 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Compatible Connector: 5.08 mm Pitch Female Pluggable Terminal Block.
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
Colour: Green.
RoHS Compliant: Yes.
