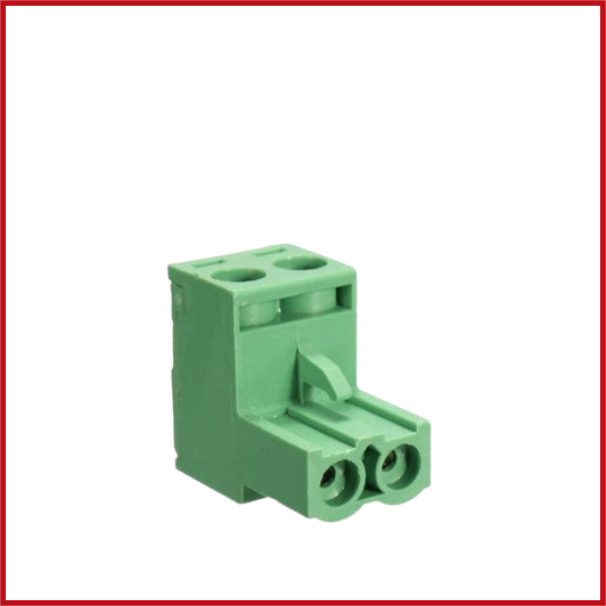

2 way Pluggable terminal block 5.08mm pitch 20A 320V ( 90 degrees ) 2EDGK-5.08-02P
SKU: CON2-0031-000
Sold by Select Automation
Final price R 3.46
R 3.01 excl. VAT
Availability: In Stock (105 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2EDGK-5.08-02P is a two-way pluggable PCB terminal block that allows for secure, high-current wire-to-board connections.
With a 5.08 mm pitch and a 90° right-angle orientation, cables can enter parallel to the PCB, making it perfect for compact installations and applications that require simple wiring and maintenance.
The pluggable design allows for rapid connection and detachment without removing individual wires, easing installation, servicing, and replacement.
The connector, made of flame-retardant PA66 with tin-plated copper alloy contacts, offers dependable electrical performance, high mechanical strength, and a long service life.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
AWG: 28~12AWG.
Torque: 0.5N.m.
Strip length: 7mm.
Rated voltage: 320V.
Rated current: 20A.
Rated voltage (III/2): 320V.
Rated surge voltage (III/2): 4KV.
Connection method: Screw connection.
Screwdriver: Slotted screwdriver.
screw thread: M3.
Pitch: 5.08mm.
Number of potentials: 2.
Pluggable or not: Yes.
Number of rows: 1.
Environmental items: Compliant with REACH/RoHS.
Contact material: Copper alloy.
Insulation Materials: PA66.
Flammability rating: UL94V-0.
Ambient temperature (operation): -40℃~105℃.
