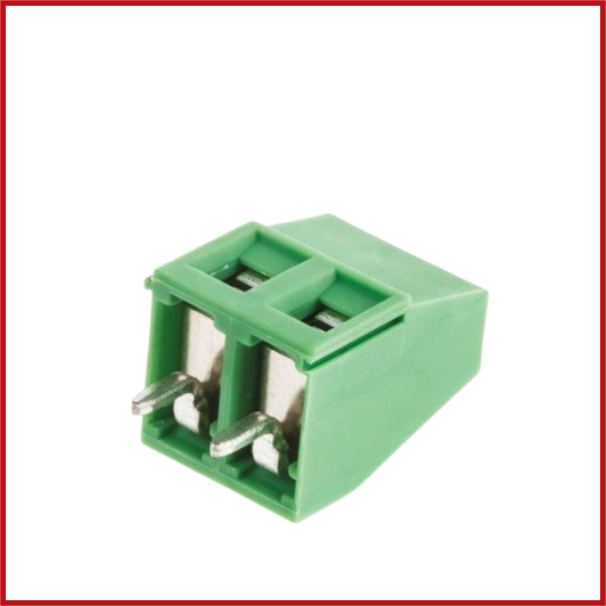

5.08mm Pitch Straight, PCB Terminal Header, 2 Way
SKU: CON2-0041-000
Sold by Select Automation
Final price R 9.56
R 8.31 excl. VAT
Availability: In Stock (131 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch Straight PCB Terminal Header, 2 Way is a high-quality through-hole PCB header that allows for a secure, detachable connection when used with compatible 5.08 mm pluggable terminal blocks.
Its 2-position structure and straight vertical orientation provide dependable board-to-wire communication for power and signal applications.
This PCB header is made of durable UL94 V-0 flame-retardant PA66 with tin-plated copper alloy connections, ensuring good electrical conductivity, mechanical strength, and long-term durability.
It is best suited for industrial control systems, power supplies, automation equipment, instrumentation, and general electronic applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Header.
Number of Positions: 2 Way.
Pitch: 5.08 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: PCB Solder Pins.
Connection Type: Plug-In Header.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
