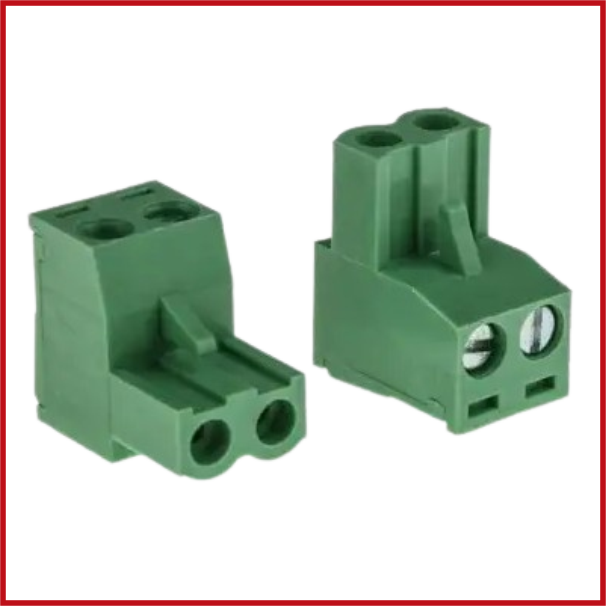

5.08mm Pitch Right Angle Terminal Block, 2 Way
SKU: CON2-0044-000
Price on request
Availability: In Stock (16 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch Right Angle Terminal Block, 2 Way is a tough PCB-mounted screw terminal connection intended for secure and dependable wire termination in electronic and electrical applications.
Its 5.08 mm pin pitch and 90° right-angle design enable straightforward side-entry wire connections, making it perfect for situations with limited vertical clearance.
This terminal block, made of flame-retardant insulating material and high-conductivity metal contacts, provides outstanding electrical performance as well as secure wire retention.
It's ideal for power distribution, industrial controllers, power supplies, automation equipment, and general PCB wiring.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Screw Terminal Block.
Number of Positions: 2 Way.
Pitch: 5.08 mm.
Orientation: Right Angle (90°).
Mounting Type: Through-Hole PCB.
Wire Entry: Side Entry.
Rated Voltage: 300 V AC.
Rated Current: 15 A.
Wire Size: 28–12 AWG (0.2–2.5 mm²).
Contact Material: Tin-Plated Copper Alloy.
Housing Material: Flame-Retardant PA66 (UL94 V-0).
Screw Material: Zinc-Plated Steel.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
