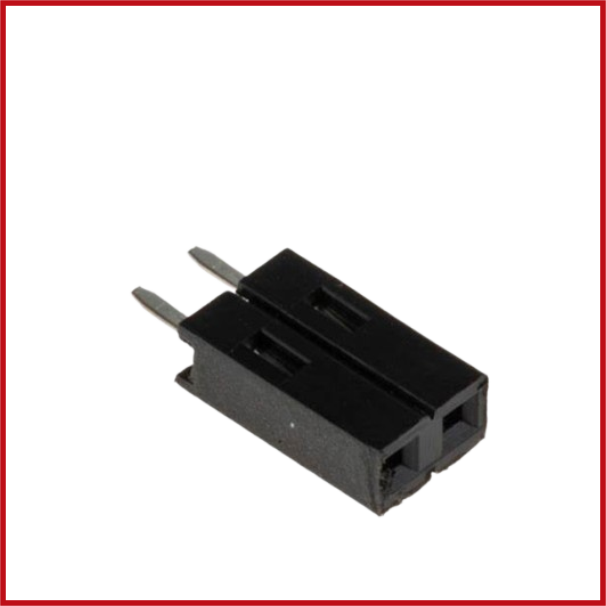

2.54mm Pitch 2 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination
SKU: CON2-0052-000
Sold by Select Automation
Final price R 3.62
R 3.15 excl. VAT
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.54mm Pitch 2 Way 1 Row Straight PCB Socket is a compact and reliable connector designed for secure board-to-board and wire-to-board connections in electronic and PCB applications.
Featuring a 2-way single-row configuration with a standard 2.54 mm pitch, this socket provides dependable electrical connectivity for signal and low-power transmission.
Its straight vertical design and through-hole mounting ensure secure PCB installation and strong mechanical stability.
Designed for solder termination, this connector offers excellent electrical contact and long-term reliability in a wide range of electronic assemblies.
Manufactured from durable thermoplastic housing with precision metal contacts, the PCB socket provides low contact resistance, excellent insulation performance, and dependable operation in demanding applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Socket Connector.
Configuration: 2 Way, 1 Row.
Pitch: 2.54 mm (0.1").
Connector Type: Female Socket.
Orientation: Straight / Vertical.
Mounting Type: Through Hole.
Termination Type: Solder.
Contact Material: Copper Alloy.
Contact Plating: Tin or Gold Plated.
Housing Material: High-Temperature Thermoplastic.
Rated Voltage: 250V.
Rated Current: 1A–3A.
Insulation Resistance: ≥ 1000 MΩ.
Contact Resistance: ≤ 20 mΩ.
Operating Temperature: -40°C to +105°C.
