20W IDC Box Header Straight
SKU: CON20-0001-000
Sold by Select Automation
Final price R 2.58
R 2.24 excl. VAT
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

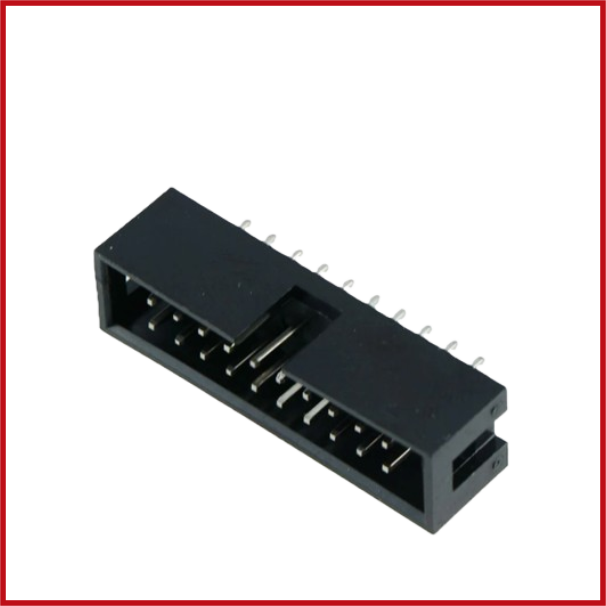

The 20-Way IDC Box Header, Straight is a dual-row through-hole PCB connection that is intended for use with 20-way IDC ribbon cable sockets.
The standard 2.54 mm pitch and 2 × 10 pin arrangement ensure a safe, polarized connection for signal transmission in electronics and industrial applications.
The header has a keyed box shroud that prevents erroneous cable insertion and ensures appropriate orientation during assembly.
Its robust thermoplastic shell and tin-plated copper alloy connections provide exceptional electrical performance and mechanical durability.
It is frequently used in embedded systems, industrial control equipment, development boards, and computer peripherals.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header.
Connector Type: Box Header (Shrouded).
Number of Positions: 20.
Configuration: 2 × 10 (Dual Row).
Pitch: 2.54 mm (0.1").
Orientation: Straight (Vertical).
Mounting Type: Through-Hole (THT).
Termination: Solder.
Mating Connector: 20-Way IDC Ribbon Cable Socket.
Contact Material: Copper Alloy.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Rated Current: 1 A per contact.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Dielectric Withstanding Voltage: 500 V AC for 1 minute.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
