Schneider Electric Terminal Block for use with Modicon M340
SKU: CON20-0003-000
Sold by Select Automation
Final price R 989.87
R 860.76 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

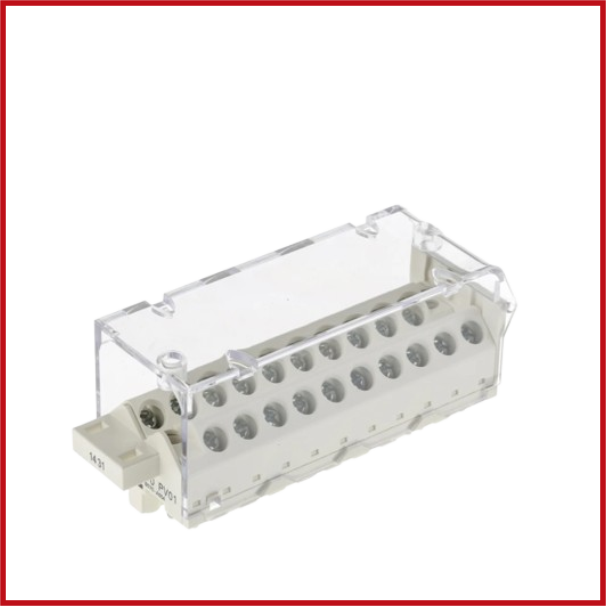

The Schneider Electric BMXFTB2010 is a 20-pin removable screw clamp terminal block that is compatible with Modicon M340 and Modicon X80 PLC I/O modules.
It offers a secure and removable wire system that simplifies installation, maintenance, and module replacement while preserving field wiring.
The BMXFTB2010 has screw clamp terminals that can accommodate one or two conductors from 0.34 mm² to 1.5 mm², providing stable electrical connections in industrial automation environments.
Its detachable design minimizes maintenance time and increases the serviceability of PLC control systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Removable Screw Clamp Terminal Block.
Manufacturer: Schneider Electric.
Part Number: BMXFTB2010.
Product Range: Modicon X80.
Number of Terminals: 20 Pin.
Connection Type: Screw Clamp.
Mounting Type: Removable Plug-In Terminal Block.
Compatible Wire Size: 0.34–1.5 mm² (22–16 AWG).
Compatible Modules: Modicon M340 and X80 I/O modules with 20-pin removable terminal blocks.
