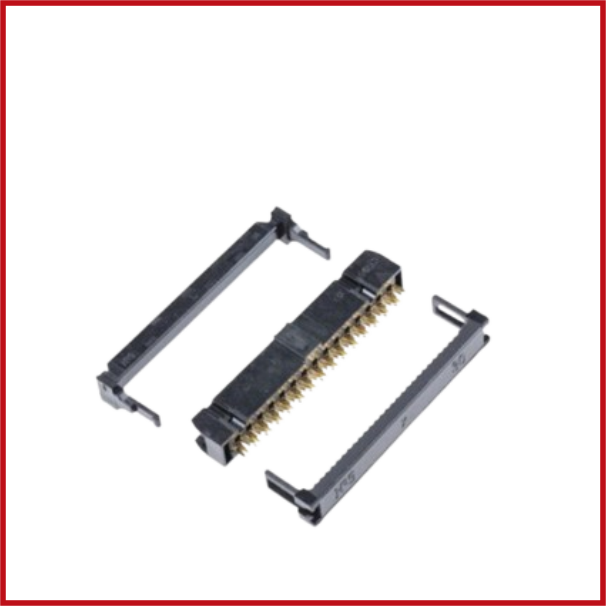

HIF3B Series 2.54mm Pitch Cable Mount IDC Connector, Socket, 20 Way, 2 Row
SKU: CON20-0004-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HIF3B Series 20-Way IDC Socket is a high-performance cable-mount insulation displacement connector (IDC) that allows for simple and reliable termination of 20-way flat ribbon cables.
The 2.54 mm pitch and 2-row (2 × 10) contact configuration ensure a stable polarized connection to appropriate PCB box headers without the need for wire stripping or soldering.
The HIF3B Series IDC socket, designed for durability and ease of assembly, features precision phosphor bronze contacts with gold plating for low contact resistance and reliable signal transmission.
It is best suited for industrial automation, telecommunications, embedded systems, computer peripherals, and general electrical equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Ribbon Cable Socket.
Series: HIF3B.
Connector Type: Female Socket.
Number of Positions: 20 Way.
Configuration: 2 Rows (2 × 10).
Pitch: 2.54 mm.
Mounting Type: Cable Mount.
Cable Type: Flat Ribbon Cable.
Termination Type: Insulation Displacement Contact (IDC).
Mating Connector: 20-Way 2.54 mm Box Header.
Contact Material: Phosphor Bronze.
Contact Plating: Gold over Nickel.
Housing Material: Glass-Filled PBT, UL94 V-0 Flame-Retardant.
Rated Current: 1 A.
Rated Voltage: 250 V AC.
Insulation Resistance: ≥1,000 MΩ.
Contact Resistance: ≤20 mΩ.
Operating Temperature: -55°C to +85°C.
RoHS Compliant: Yes.
