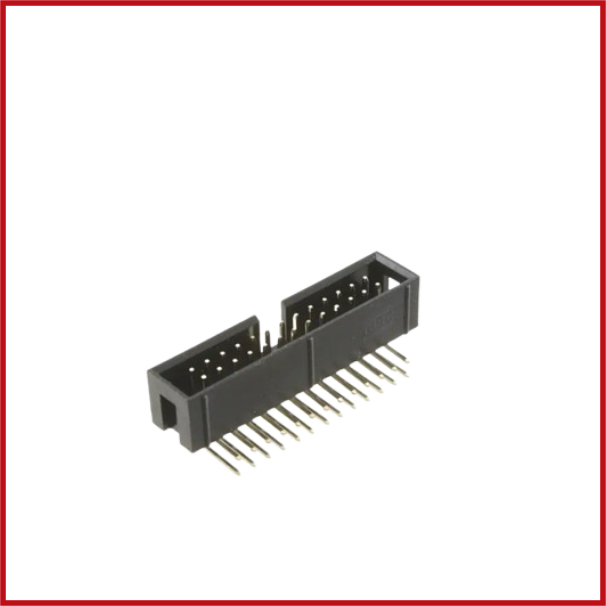

26W IDC Box Header Right Angle
SKU: CON26-0002-000
Sold by Select Automation
Final price R 3.36
R 2.92 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 26-Way IDC Box Header, Right Angle is a shrouded PCB connector that is intended for use with 26-way IDC ribbon cable sockets.
The 2 × 13 dual-row arrangement, with a 2.54 mm (0.1") pitch, ensures a stable, polarized connection for flat ribbon cable assemblies.
The cable exits parallel to the PCB, making it excellent for space-constrained applications.
The incorporated keyed shroud protects against erroneous cable insertion and guarantees proper connector alignment.
The connector, made of flame-retardant thermoplastic shell with tin-plated copper alloy contacts, provides dependable electrical performance and mechanical endurance for industrial, embedded, and computer applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header.
Connector Type: Shrouded PCB Header.
Number of Positions: 26.
Configuration: 2 × 13 (Dual Row).
Pitch: 2.54 mm (0.1").
Orientation: Right Angle (Horizontal).
Mounting Type: Through-Hole (THT).
Termination: Solder.
Mating Connector: 26-Way IDC Ribbon Cable Socket.
Contact Material: Copper Alloy.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Rated Current: 1 A per contact.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Dielectric Withstanding Voltage: 500 V AC for 1 minute.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
