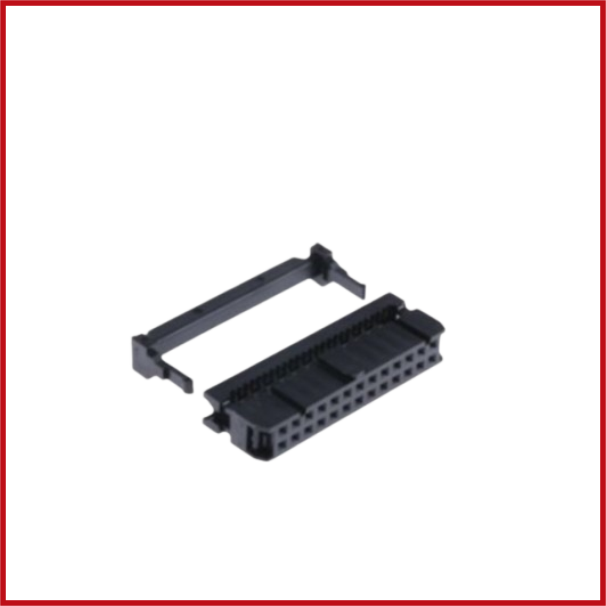

26W IDC Socket and Strain Relief
SKU: CON26-0003-000
Sold by Select Automation
Final price R 2.36
R 2.05 excl. VAT
Availability: In Stock (21 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 26-Way IDC Socket with Strain Relief is a high-quality ribbon cable connector that allows for quick and reliable termination of 26-way flat ribbon cables.
The 2 × 13 dual-row arrangement, with a 2.54 mm (0.1") pitch, is compatible with conventional 26-way IDC box headers, ensuring safe signal connections in electronics and industrial applications.
Using Insulation Displacement Contact (IDC) technology, the connector allows ribbon cables to be terminated fast without stripping individual wires.
The incorporated strain relief clip firmly clamps the cable, reducing mechanical stress on the contacts and increasing durability in applications prone to movement and vibration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Ribbon Cable Socket.
Connector Type: IDC Socket with Strain Relief.
Number of Positions: 26.
Configuration: 2 × 13 (Dual Row).
Pitch: 2.54 mm (0.1").
Cable Type: 26-Way Flat Ribbon Cable.
Termination Method: Insulation Displacement Contact (IDC).
Mating Connector: 26-Way IDC Box Header.
Contact Material: Phosphor Bronze.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Strain Relief: Integrated Clip.
Rated Current: 1 A per contact.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Dielectric Withstanding Voltage: 500 V AC for 1 minute.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
