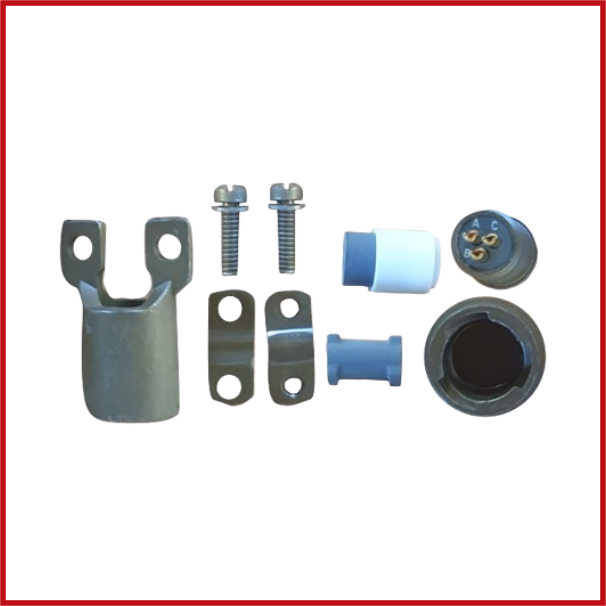

Circular Connector Straight Plug - KPT06F8-3P
SKU: CON3-0001-000
Sold by Select Automation
Final price R 26.97
R 23.45 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The KPT06F8-3P is a circular connector straight plug with 3 pins, designed for secure electrical connections in demanding environments.
It features a size 8 shell, supports up to 7.5A at 600V, and is constructed from durable materials with gold-plated contacts.
Rated IP67 for dust and moisture resistance, it operates within a temperature range of -55°C to +125°C, making it ideal for military, aerospace, and industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Circular Connector, Straight Plug
Pin Configuration: 3 pins (contacts)
Shell Size: Size 8
Gender: Male (plug)
Termination Method: Solder or crimp
Current Rating: Up to 7.5A per contact
Voltage Rating: Typically rated for 600V
Contact Material: Copper alloy with gold plating
Insulation Material: Thermoplastic
Environmental Rating: IP67 (dust-tight and resistant to temporary immersion in water)
Temperature Range: -55°C to +125°C
Durability: Rated for 500 mating cycles
