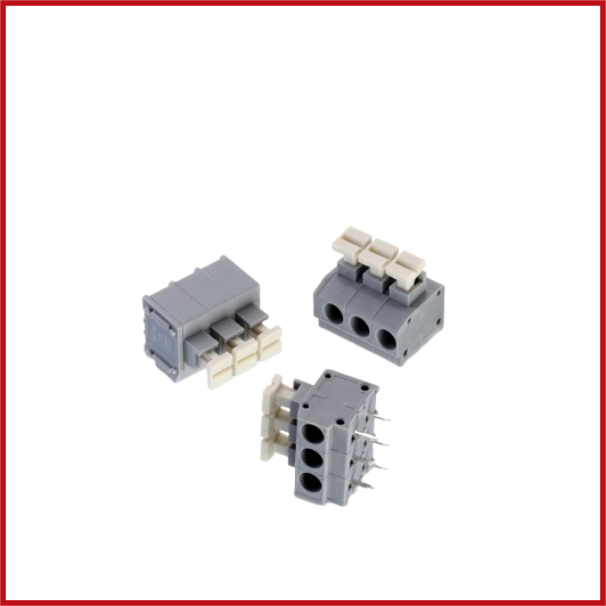

PCB Terminal Block Push Button3 HOLE
SKU: CON3-0004-000
Sold by Select Automation
Final price R 15.80
R 13.74 excl. VAT
Availability: In Stock (16 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PCB Terminal Block Push Button, 3 Hole is a compact spring-clamp PCB terminal block that allows for rapid, secure, and screwless wire connections.
Its three-position structure, combined with an integrated push-button wire release mechanism, enables for rapid conductor insertion and removal without the use of screws or specialized tools.
The spring-clamp construction ensures a dependable, vibration-resistant electrical connection, making it perfect for industrial control systems, power supply, lighting equipment, automation, and general printed circuit board applications.
Its UL94 V-0 flame-retardant PA66 construction, combined with tin-plated copper alloy connections, provides good electrical performance, durability, and a long service life.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Push Button Terminal Block.
Number of Positions: 3 Hole (3 Way).
Connection Type: Push Button Spring Clamp.
Mounting Type: Through-Hole PCB.
Orientation: Straight (Vertical).
Termination: Spring Clamp.
Rated Current: Up to 10 A.
Rated Voltage: Up to 300 V AC.
Wire Size: 0.2–2.5 mm² (24–14 AWG).
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
