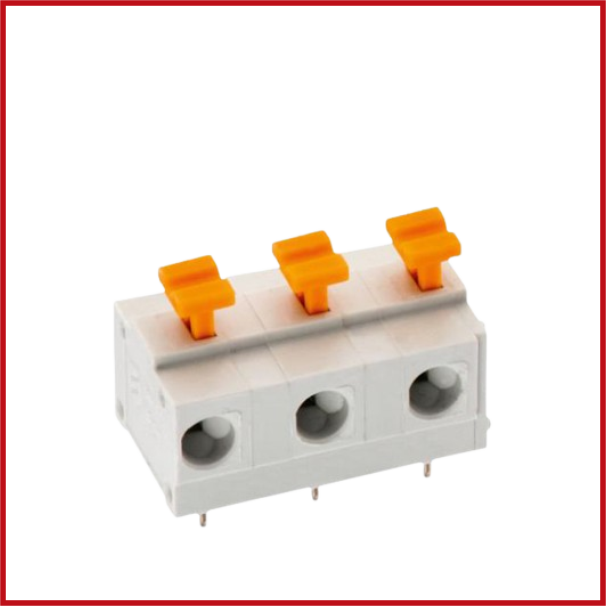

5mm Screwless Spring Terminal Block 3 way 12A 250V Straight Pins
SKU: CON3-0008-000
Sold by Select Automation
Final price R 5.03
R 4.37 excl. VAT
Availability: In Stock (13 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5mm Screwless Spring Terminal Block is a durable 3-way PCB terminal block that allows for rapid, secure, and tool-free wire connections.
This terminal block, with a 5.0 mm pitch, 3-position design, and straight through-hole pins, employs a spring-clamp mechanism to create a firm, vibration-resistant connection in the absence of screws.
The terminal block, made with tin-plated copper alloy contacts and a UL94 V-0 flame-retardant PA66 housing, has high electrical conductivity, mechanical durability, and long-term reliability.
It is suitable for industrial automation, control systems, lighting, power supplies, and general PCB wiring applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Screwless Spring Terminal Block.
Number of Positions: 3 Way.
Pitch: 5.0 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination Type: Spring Clamp (Push-In).
Wire Size: 0.2–2.5 mm² (24–12 AWG).
Rated Current: 12 A.
Rated Voltage: 250 V AC.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Colour: Green.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
