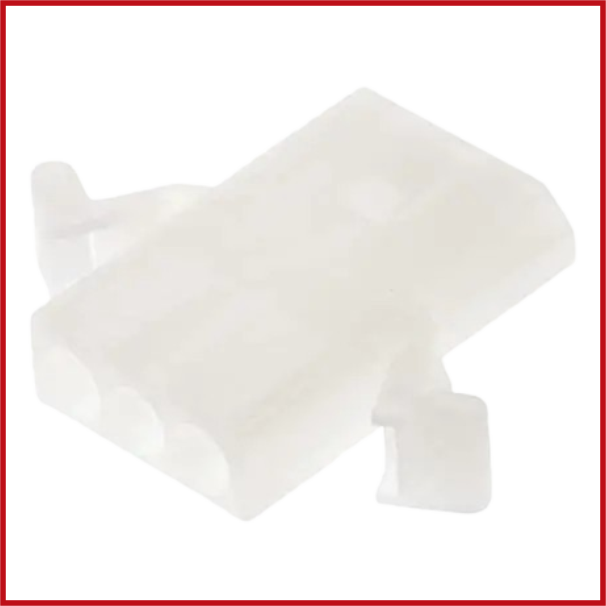

3 Way 3.68mm Housing Socket ( PINS CON1-0005-000)
SKU: CON3-0013-000
Sold by Select Automation
Final price R 24.02
R 20.89 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 3-Way 3.68mm Housing Socket is a high-quality wire-to-board female connector housing that ensures secure and reliable cable-to-PCB connections.
This cable-mount enclosure accepts appropriate female crimp terminals and mates with matching 3.68 mm PCB headers to offer a solid electrical connection.
The housing, made of UL94 V-0 flame-retardant PA66 nylon, offers outstanding mechanical strength, secure terminal retention, and long-term endurance.
Its polarized construction assures proper connector orientation, making it suitable for industrial equipment, power supply, appliances, LED lighting, and other electrical applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Number of Positions: 3 Way.
Configuration: 1 Row.
Pitch: 3.68 mm.
Connector Type: Socket Housing.
Gender: Female.
Mounting Type: Cable Mount.
Termination Type: Crimp.
Connection Type: Wire-to-Board.
Compatible Contacts: 3.68 mm Female Crimp Terminals.
Compatible Header: 3.68 mm Pitch Male PCB Header.
Housing Material: PA66 Nylon, UL94 V-0 Flame-Retardant.
Colour: Natural (White).
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
