5.08-301-2P Screw Terminal Block Connector 5mm Pitch 3 Way Green
SKU: CON3-0014-000
Sold by Select Automation
Final price R 2.19
R 1.90 excl. VAT
Availability: In Stock (47 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

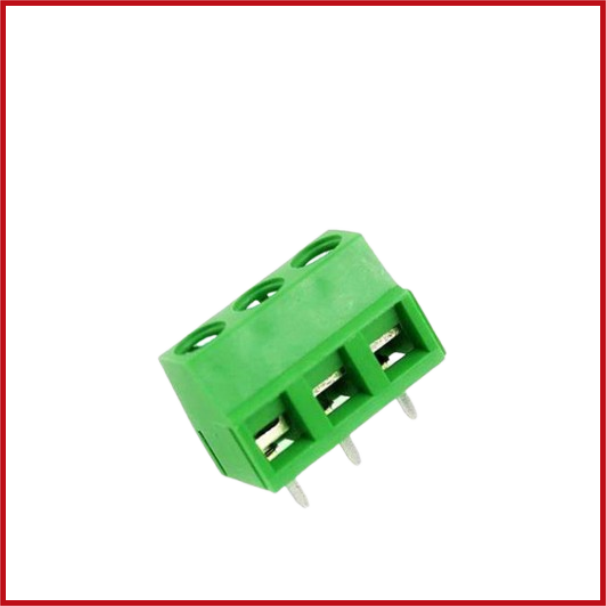

The 5.08-301-3P Screw Terminal Block Connector is a high-quality three-way PCB-mounted terminal block that ensures secure and reliable wire-to-board connections.
With a 5.08 mm pitch and strong screw-clamp connections, it offers excellent electrical conductivity and secure wire retention for power and signal applications.
This terminal block, made of UL94 V-0 flame-retardant PA66 housing with tin-plated copper alloy contacts, is built to last and perform reliably.
The green housing is easily identifiable and suitable for industrial controls, power supply, automation equipment, LED lighting, and general PCB wiring.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Screw Terminal Block.
Model: 5.08-301-3P.
Number of Positions: 3 Way.
Pitch: 5.08 mm (5 mm nominal).
Mounting Type: Through-Hole PCB.
Wire Entry: Vertical (Top Entry).
Connection Type: Screw Clamp.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Wire Size: 28–12 AWG (0.2–2.5 mm²).
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Contact Material: Tin-Plated Copper Alloy.
Screw Material: Zinc-Plated Steel.
Colour: Green.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
