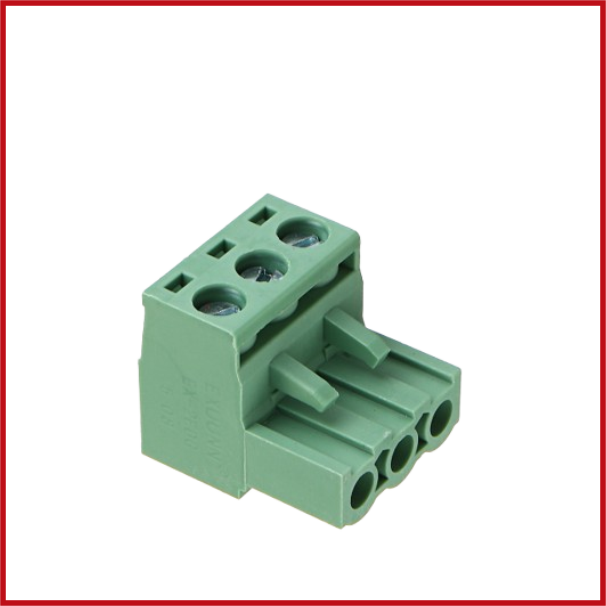

5.08mm Pitch Right Angle Terminal Block, 3 Way , FEMALE (PAIRS WITH CON3-0018-000)
SKU: CON3-0017-000
Sold by Select Automation
Final price R 4.95
R 4.30 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch Right Angle Terminal Block, 3 Way, Female is a high-quality pluggable terminal block connector that provides secure and dependable wire-to-board connections in industrial and commercial electronic applications.
This right-angle female terminal block has a 3-position, single-row layout with a 5.08 mm pitch.
It matches with compatible 5.08 mm PCB headers, allowing for simple installation, easy maintenance, and straightforward field wiring.
Screw-clamp terminations provide a robust, vibration-resistant connection for power and signal wiring.
This connector, made of tin-plated copper alloy contacts and a UL94 V-0 flame-retardant PA66 housing, has good electrical performance, durability, and a long service life.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pluggable Terminal Block Connector.
Gender: Female.
Number of Positions: 3 Way.
Configuration: 1 Row.
Pitch: 5.08 mm.
Orientation: Right Angle (90°).
Mounting Type: Cable Mount.
Termination Type: Screw Clamp.
Wire Size: 0.2–2.5 mm² (24–12 AWG).
Compatible Header: 5.08 mm Pitch Male PCB Terminal Block Header.
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Colour: Green.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
