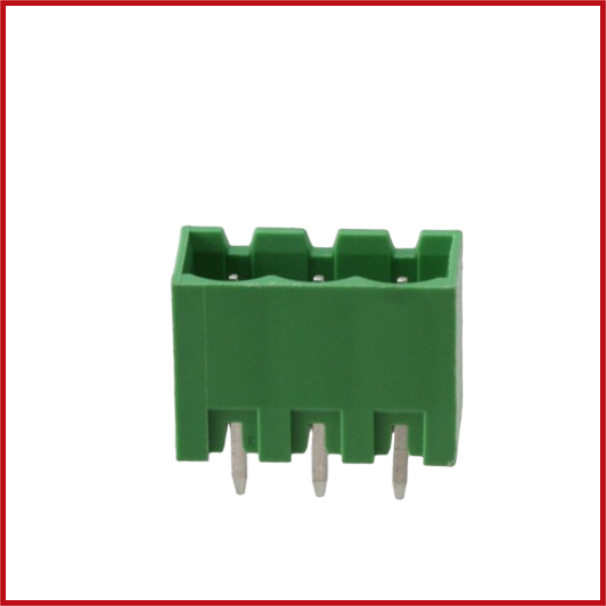

3 Way 5.08,mm Pitch Straight PCB Header
SKU: CON3-0019-000
Sold by Select Automation
Final price R 2.69
R 2.34 excl. VAT
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 3-Way 5.08mm Pitch Straight PCB Header is a durable wire-to-board PCB connector intended for secure and dependable pluggable terminal block connections.
This straight (vertical) through-hole PCB header, with a 3-position, single-row layout and a pitch of 5.08 mm, provides a sturdy interface for compatible 5.08 mm pluggable terminal block plugs, making it perfect for power and signal applications.
The connector's tin-plated copper alloy contacts and UL94 V-0 flame-retardant PA66 housing provide good electrical conductivity, mechanical durability, and long-term reliability.
It’s through-hole attachment provides a strong mechanical bond to the PCB, making it appropriate for industrial automation, control systems, power supply, and general electronic equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Block Header.
Number of Positions: 3 Way.
Configuration: 1 Row.
Pitch: 5.08 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Compatible Connector: 5.08 mm Pitch Pluggable Terminal Block Plug.
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
Colour: Green.
RoHS Compliant: Yes.
