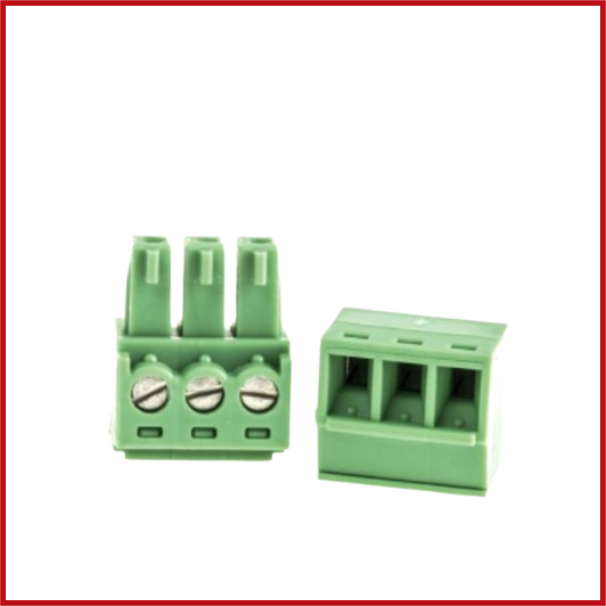

3 WAY Mini Combicon Terminal Block 30 - 14AWG
SKU: CON3-0022-000
Sold by Select Automation
Final price R 13.03
R 11.33 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 3-Way Mini Combicon Terminal Block is a small pluggable wire-to-board connector intended for secure and dependable power and signal connections in industrial and commercial electronic applications.
This terminal block, which supports 30-14 AWG wires, has a space-saving design while yet providing outstanding electrical performance and easy field wiring.
The screw-clamp termination offers strong wire retention and reliable electrical contact, while the pluggable design enables quick installation, maintenance, and replacement without interrupting field wiring.
It is made of UL94 V-0 flame-retardant thermoplastic with tin-plated copper alloy connections for long-term durability and dependable performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Mini Combicon Pluggable Terminal Block.
Number of Positions: 3 Way.
Connection Type: Screw Clamp.
Mounting Type: Plug-In.
Wire Gauge: 30–14 AWG.
Wire Size: 0.05–2.5 mm².
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: Up to 12 A.
Rated Voltage: Up to 300 V AC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
