3pin header 2.54mm
SKU: CON3-0029-000
Sold by Select Automation
Final price R 3.45
R 3.00 excl. VAT
Availability: In Stock (62 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

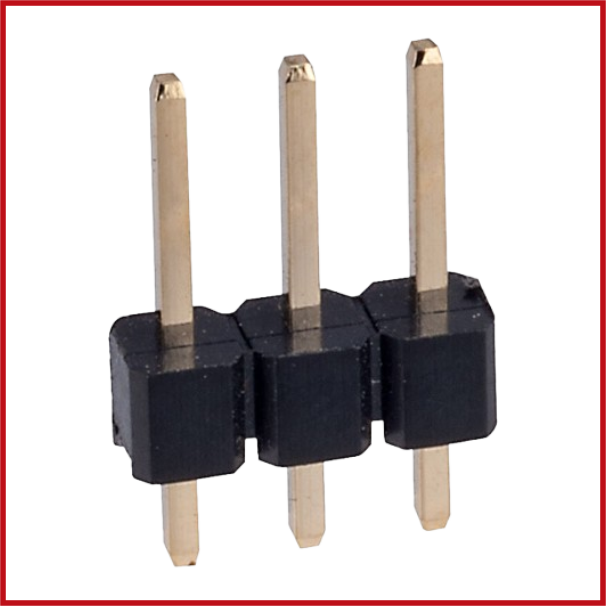

The 3-Pin 2.54mm Pin Header is a single-row through-hole PCB connector that ensures reliable board-to-board and wire-to-board connections.
With a standard 2.54 mm (0.1") pitch, it is compatible with breadboards, jumper wires, female header sockets, and a variety of electrical development platforms such as Arduino, Raspberry Pi, ESP32, and STM32.
Its durable design enables secure soldering and long-term dependability in prototype, embedded systems, and production devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pin Header.
Number of Pins: 3.
Pitch: 2.54 mm (0.1").
Configuration: Single Row.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole (THT).
Contact Material: Copper Alloy.
Insulator Material: Black Thermoplastic (PA6T or PBT).
Insulation Flammability Rating: UL94 V-0.
Rated Current: 3 A.
Rated Voltage: 250 V AC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Operating Temperature: -40°C to +105°C.
