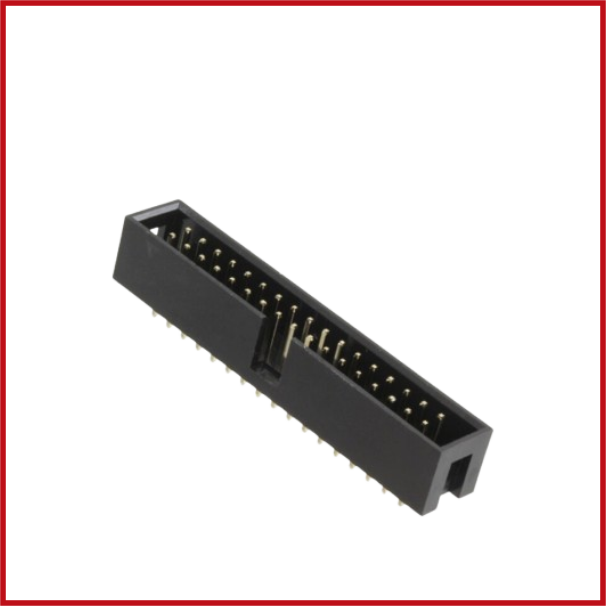

34W IDC Box Header Straight
SKU: CON34-0001-000
Sold by Select Automation
Final price R 3.57
R 3.10 excl. VAT
Availability: In Stock (16 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 34-Way IDC Box Header, Straight is a shrouded PCB connector designed to connect 34-way IDC ribbon cable connections securely.
The 2 × 17 dual-row arrangement with a 2.54 mm (0.1") pitch ensures a safe, polarized interface for signal transfer in industrial, embedded, and electronic applications.
The incorporated keyed box shroud assures proper cable alignment and prevents incorrect insertion, while the through-hole mounting design provides a secure mechanical connection to the PCB.
This connector, made of high-temperature, flame-retardant thermoplastic with tin-plated copper alloy contacts, provides exceptional durability and consistent electrical performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Box Header.
Connector Type: Shrouded PCB Header.
Number of Positions: 34.
Configuration: 2 × 17 (Dual Row).
Pitch: 2.54 mm (0.1").
Orientation: Straight (Vertical).
Mounting Type: Through-Hole (THT).
Termination: Solder.
Mating Connector: 34-Way IDC Ribbon Cable Socket.
Contact Material: Copper Alloy.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Rated Current: 1 A per contact.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Dielectric Withstanding Voltage: 500 V AC for 1 minute.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
