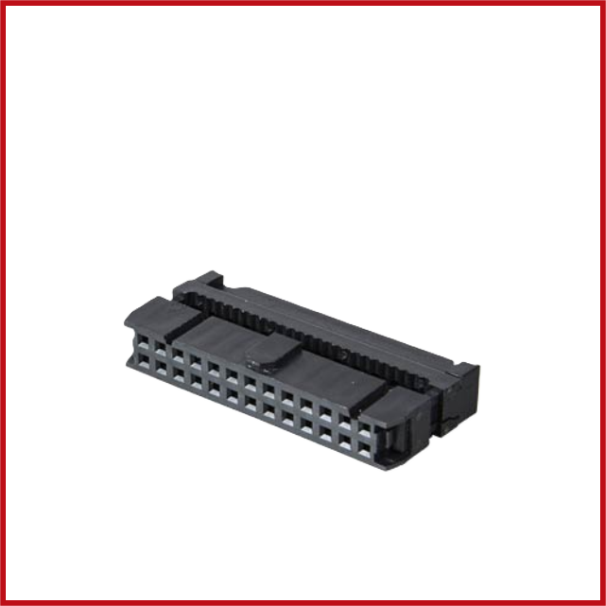

34W IDC Socket and Strain Relief
SKU: CON34-0002-000
Sold by Select Automation
Final price R 3.16
R 2.75 excl. VAT
Availability: In Stock (14 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 34-Way IDC Socket with Strain Relief is a high-quality ribbon cable connector that allows for quick and reliable termination of 34-way flat ribbon cables.
The 2 × 17 dual-row arrangement with a 2.54 mm (0.1") pitch is compatible with standard 34-way IDC box headers, ensuring secure and reliable signal connections for electronic, industrial, and computer applications.
The connector uses Insulation Displacement Contact (IDC) technology to facilitate rapid cable termination without stripping individual conductors.
The inbuilt strain relief clip securely clamps the ribbon cable, reducing mechanical stress on the contacts and increasing dependability in situations involving vibration or repeated cable movement.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Ribbon Cable Socket.
Connector Type: IDC Socket with Strain Relief.
Number of Positions: 34.
Configuration: 2 × 17 (Dual Row).
Pitch: 2.54 mm (0.1").
Cable Type: 34-Way Flat Ribbon Cable.
Termination Method: Insulation Displacement Contact (IDC).
Mating Connector: 34-Way IDC Box Header.
Contact Material: Phosphor Bronze.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Strain Relief: Integrated Clip.
Rated Current: 1 A per contact.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Dielectric Withstanding Voltage: 500 V AC for 1 minute.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
