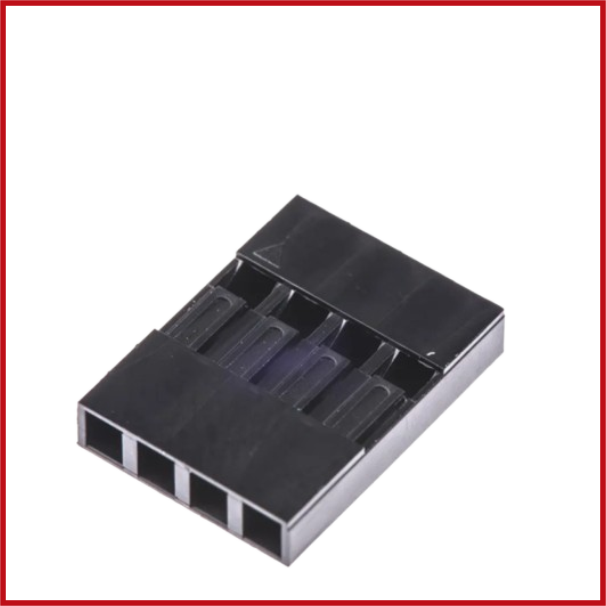

2.54mm Pitch, 4 Way, 1 Row Female Connector Housing
SKU: CON4-0003-000
Sold by Select Automation
Final price R 4.97
R 4.32 excl. VAT
Availability: In Stock (39 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.54mm Pitch 4-Way Female Connector Housing is a small wire-to-board connector housing intended for secure and dependable cable-to-PCB connections.
This cable-mount housing has a 4-position, single-row layout with a pitch of 2.54 mm (0.100") and accepts appropriate female crimp terminals as well as conventional 2.54 mm male pin headers.
The housing, made of durable UL94 V-0 flame-retardant nylon, has outstanding mechanical strength, secure terminal retention, and long-lasting performance.
Its polarized design assures appropriate connector alignment, making it suitable for industrial electronics, development boards, embedded systems, and general electronic assemblies.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Number of Positions: 4 Way.
Configuration: 1 Row.
Pitch: 2.54 mm (0.100").
Connector Type: Female Housing.
Mounting Type: Cable Mount.
Termination Type: Crimp.
Connection Type: Wire-to-Board.
Compatible Contacts: 2.54 mm Female Crimp Terminals.
Compatible Header: 2.54 mm Pitch Male Pin Header.
Housing Material: PA66 Nylon, UL94 V-0 Flame-Retardant.
Colour: Black.
Operating Temperature: -25°C to +85°C.
RoHS Compliant: Yes.
