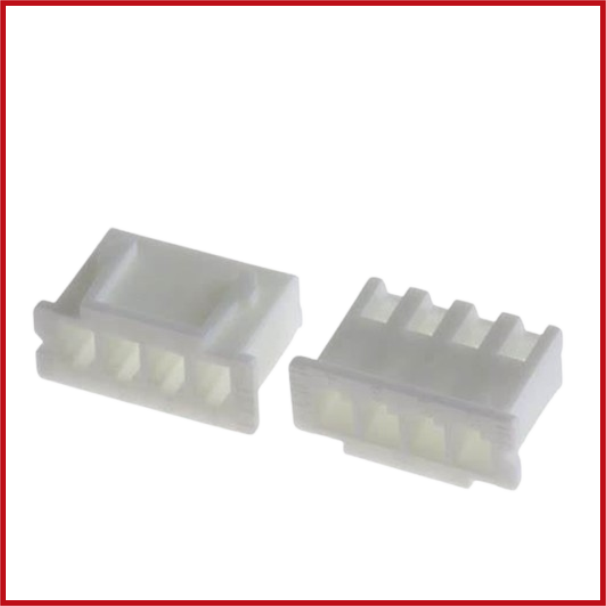

2.5mm Pitch, 4 Way, 1 Row Female Connector Housing (PIN CON1-0002-000)
SKU: CON4-0005-000
Sold by Select Automation
Final price R 2.66
R 2.31 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.5mm Pitch 4-Way Female Connector Housing is a high-quality wire-to-board connector housing that allows for secure and dependable cable-to-PCB connections.
This cable-mount housing has a 4-position, single-row layout with a 2.5 mm pitch, accepts suitable female crimp terminals, and is compatible with standard 2.5 mm pitch PCB headers.
The housing is made of UL94 V-0 flame-retardant nylon, which provides good mechanical strength, secure terminal retention, and long-term performance.
Its polarized design assures proper connector alignment, making it perfect for industrial automation, consumer electronics, power supply, LED lighting, and embedded applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Number of Positions: 4 Way.
Configuration: 1 Row.
Pitch: 2.5 mm.
Connector Type: Female Housing.
Mounting Type: Cable Mount.
Termination Type: Crimp.
Connection Type: Wire-to-Board.
Compatible Contacts: 2.5 mm Female Crimp Terminals.
Compatible Header: 2.5 mm Pitch PCB Header.
Housing Material: PA66 Nylon, UL94 V-0 Flame-Retardant.
Colour: Natural (White).
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
