DG142V-5.08-04P-14-00A TERMINAL BLOCK R/A 4W 5.08 PRESS
SKU: CON4-0009-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

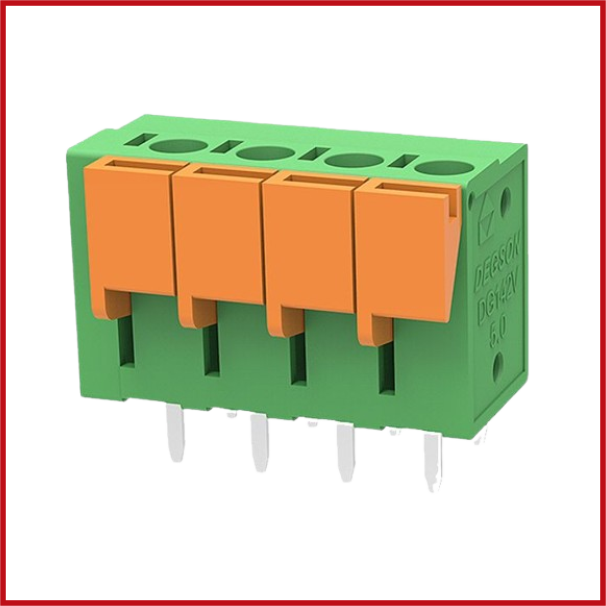

The DG142V-5.08-04P-14-00A(H) is a four-way straight PCB-mount terminal block with a push-in spring connection for quick and secure wire termination.
It features a 5.08mm pitch and is intended for direct PCB installation, creating a compact and convenient connecting point for electrical wiring.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: PCB spring terminal block.
Number of Ways / Positions: 4.
Mounting: PCB mount.
Connection Direction: Straight / 90° terminal configuration.
Connection Method: Push-in spring connection.
Pitch: 5.08mm.
Wire Size: 22–16AWG.
Maximum Wire Cross-Section: 1.5mm².
Conductor Type: Solid or flexible.
Contact Material: Copper alloy.
Contact Plating: Tin.
Insulation Material: PA66.
Flammability Rating: UL94-V0.
Rated Voltage: 250V IEC.
Rated Current: 15A IEC.
UL Rated Voltage: 300V.
UL Rated Current: 10A.
Operating Temperature: -40°C to +105°C.
PCB Installation: Through-hole / THT.
Colour: Green.
Application: PCB wiring, industrial controls, power distribution, automation equipment, instrumentation and electronic assemblies.
