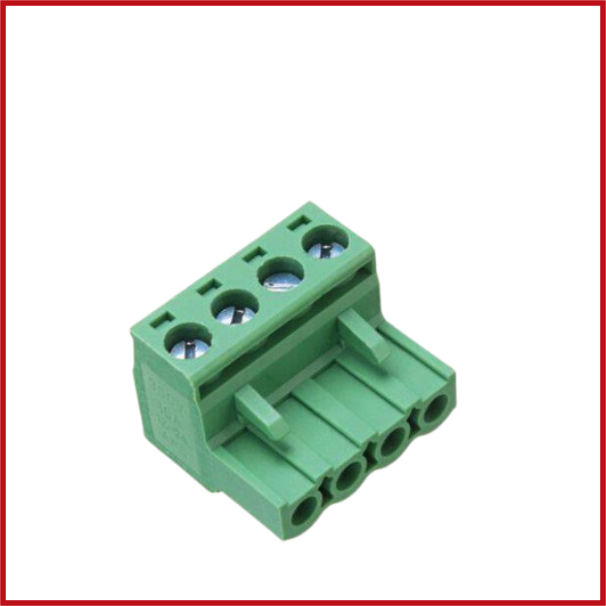

5.08mm Pitch Right Angle Terminal Block, 4 Way (PAIRS WITH CON4-0011-000)
SKU: CON4-0010-000
Sold by Select Automation
Final price R 9.60
R 8.35 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch Right Angle Terminal Block, 4 Way is a strong 4-position PCB terminal block for secure wire-to-board connections in industrial and commercial electronic applications.
This terminal block, with its 5.08 mm pitch and 90° right-angle wire entry, allows for horizontal cable routing, making it perfect for PCB layouts with limited space.
The screw-clamp termination ensures a tight, vibration-resistant connection and may fit a variety of wire sizes.
Its UL94 V-0 flame-retardant PA66 construction, along with tin-plated copper alloy connections, provides outstanding electrical conductivity, mechanical strength, and long-term durability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Block.
Number of Positions: 4 Way.
Pitch: 5.08 mm.
Orientation: Right Angle (90°).
Mounting Type: Through-Hole PCB.
Termination Type: Screw Clamp.
Wire Size: 0.2–2.5 mm² (24–12 AWG).
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
Colour: Green.
RoHS Compliant: Yes.
