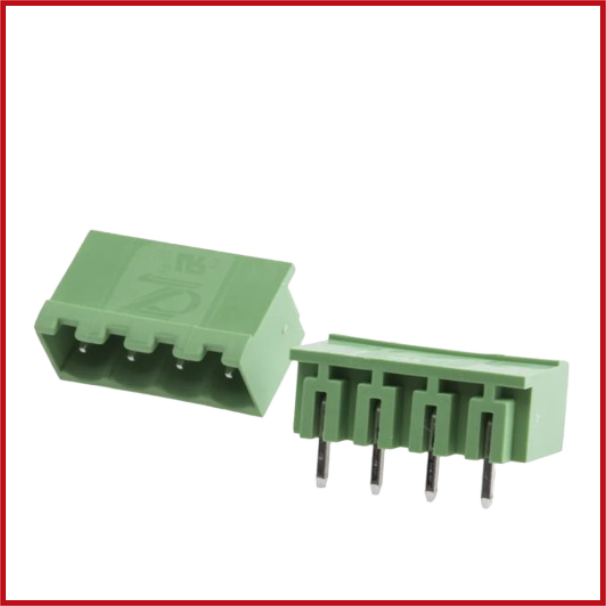

5.08mm Pitch Right Angle PCB Terminal Header 4 Way (PAIRS WITH CON4-0010-000)
SKU: CON4-0011-000
Sold by Select Automation
Final price R 14.84
R 12.90 excl. VAT
Availability: In Stock (51 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch Right Angle PCB Terminal Header, 4 Way is a strong wire-to-board PCB connector that allows for secure and reliable pluggable terminal block connections.
This through-hole PCB header, with a 4-position arrangement, 5.08 mm pitch, and right-angle orientation, is an economical solution for horizontal cable routing in industrial and commercial electronic applications.
The header, made of tin-plated copper alloy contacts and a UL94 V-0 flame-retardant thermoplastic housing, provides good electrical conductivity, mechanical durability, and long-term reliability.
It is intended to work with compatible 5.08 mm pluggable terminal block plugs, making installation and maintenance simple and easy.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Header.
Number of Positions: 4 Way.
Pitch: 5.08 mm.
Configuration: 1 Row.
Orientation: Right Angle (90°).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Compatible Connector: 5.08 mm Pitch Pluggable Terminal Block Plug.
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
Colour: Green.
RoHS Compliant: Yes.
